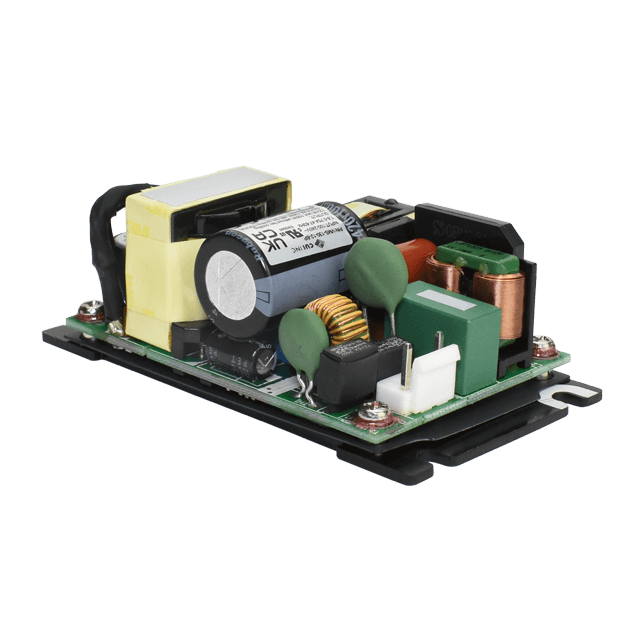

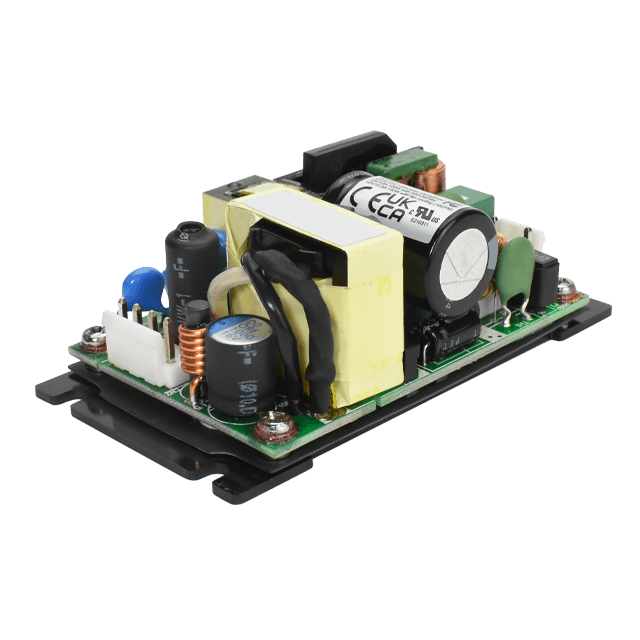

VOF-130-24-BP AC-DC Converters
129.6 W AC-DC Power Supply, 24 VDC, 5.4 A Output, 80 ~ 264 VAC Input Range, Open Frame, Chassis Mount
Stock Check
Country - USA
Features & Specifications
| Power (W) | 129.6 |
| Input Voltage Range (VAC) | 80 ~ 264 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 24 |
| Output Current (A) | 5.4 |
| Operating Temperature Range (ºC) | -30 ~ +70 |
| Cooling Type | Baseplate, Convection, Fan |
| Dimensions L x W x H (mm) | 91.4 x 50.8 x 33 |
| Dimensions L x W x H (in) | 3.6 x 2 x 1.3 |
| Mounting Type | Chassis Mount |
| Package | Open Frame |
| Market | ITE |
| Safety Standards | 62368 |
| Safety Approvals | CE, UKCA, UL/cUL |
| RoHS Compliant | Yes |
| Brand | CUI |
