VMS-81 Series

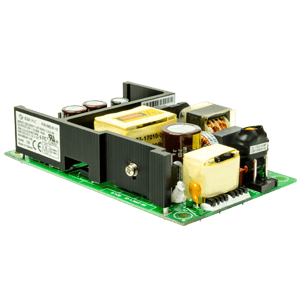

The VMS-81 series is an open frame AC-DC power supply designed for use in a range of medical and dental products. Certified to the IEC 60601-1 3rd edition standard for 2 x MOPP applications, these medical power supplies allow engineers to meet the most stringent requirements in today's medical designs.
Features
  • Industry standard 3” x 5” footprint
  • Power factor correction (PFC)
  • Designed for 2 x MOPP applications
Specifications
  • Power (W): 70 ~ 80
  • Input Voltage Range (VAC): 90 ~ 260
  • Output Voltage (VDC): 5 ~ 36
  • Operating Temperature Range (ºC): 0 ~ +50
  • Cooling Type: Convection
  • Dimensions L x W x H (mm): 127.5 x 77 x 28.1
  • Dimensions L x W x H (in): 3 x 5 x 1.11
  • Safety Standards: 60601
  • Safety Approvals: CE, TUV, UL/cUL
  • RoHS Compliant: Yes
