Medical

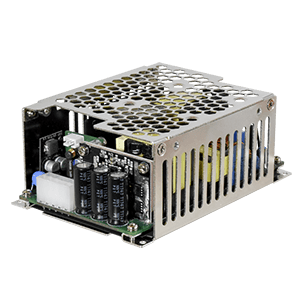

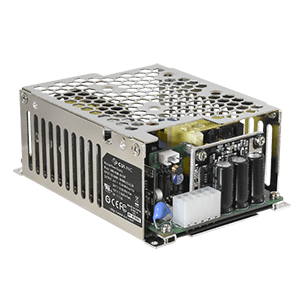

VMS-450B-CNF Series
Specifications
- Power (W): 450
- Input Voltage Range (VAC): 90 ~ 264
- Output Voltage (VDC): 12 ~ 56
- Operating Temperature Range (ºC): -20 ~ +50
- Cooling Type: Convection, Fan
- Dimensions L x W x H (mm): 127 x 86.6 x 50
- Dimensions L x W x H (in): 5 x 3.41 x 1.97
- Safety Standards: 60601
- Safety Approvals: CE, FCC, TUV, UL/cUL
- RoHS Compliant: Yes
Features
- Power factor correction (PFC)
- 5 Vdc AUX output
Compatible Products with VMS-450B-CNF Series
VMS-450B Series
The VMS-450B series is a high-density AC-DC power supply certified to the medical 60601-1 3rd edition safety standard for 2 x MOPP applications and 4th edition EMC requirements. Packaged in an industry standard 3" x 5" footprint, these medical power supplies are ideal for space-constrained medical and dental applications where reliability and regulatory compliance are major concerns.
View Product
VMS-450B-CF Series
The VMS-450B-CF series is a high-density AC-DC power supply certified to the medical 60601-1 3rd edition safety standard for 2 x MOPP applications and 4th edition EMC requirements. Packaged in a compact footprint, these medical power supplies are ideal for space-constrained medical and dental applications where reliability and regulatory compliance are major concerns.
View Product
VMS-450B-CFS Series
The VMS-450B-CFS series is a high-density AC-DC power supply certified to the medical 60601-1 3rd edition safety standard and 4th edition EMC requirements. Packaged in a low-profile case, these medical power supplies are ideal for space-constrained medical and dental applications where reliability and regulatory compliance are major concerns.
View Product
