3D View
Active
Medical

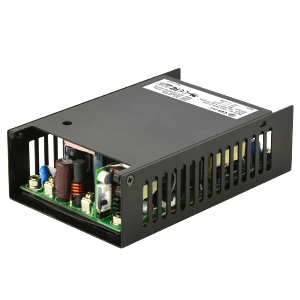

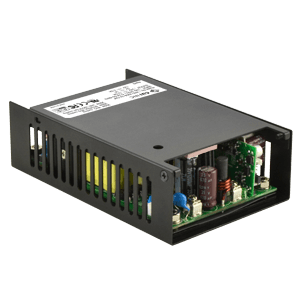

VMS-300A-12-CNF AC-DC Converters
300 W AC-DC Power Supply, 12 VDC, 25 A Output, 90 ~ 264 VAC Input Range, Metal Case, Chassis Mount, Certified to IEC 60601
Stock Check
Country - USA
Features & Specifications
| Power (W) | 300 |
| Input Voltage Range (VAC) | 90 ~ 264 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 25 |
| Operating Temperature Range (ºC) | -40 ~ +60 |
| Cooling Type | Convection, Fan |
| Dimensions L x W x H (mm) | 136 x 88 x 40.4 |
| Dimensions L x W x H (in) | 5.35 x 3.46 x 1.59 |
| Mounting Type | Chassis Mount |
| Package | Metal Case |
| Features | Output Trimming (external resistance), Power Factor Correction (Active), Remote On/Off, Remote Sense |
| Market | Medical |
| Safety Standards | 60601 |
| Safety Approvals | CE, TUV, UL/cUL |
| RoHS Compliant | Yes |
| Brand | CUI |
