Not Recommended for New Design (NRND)

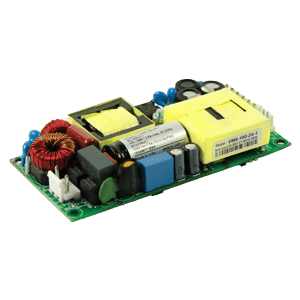

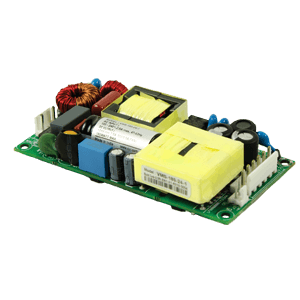

VMS-180-58 AC-DC Converters
This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please contact tech support below with any questions.
Stock Check
Country - USA
Features & Specifications
| Power (W) | 180 |
| Input Voltage Range (VAC) | 80 ~ 264 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 58 |
| Output Current (A) | 3.1 |
| Operating Temperature Range (ºC) | -40 ~ +50 |
| Cooling Type | Convection, Fan |
| Dimensions L x W x H (mm) | 101.6 x 50.8 x 19.05 |
| Dimensions L x W x H (in) | 4 x 2 x 0.75 |
| Mounting Type | Chassis Mount |
| Package | Open Frame |
| Features | Output Trimming (external resistance), Power Factor Correction (Active) |
| Market | Medical |
| Safety Standards | 60601 |
| Safety Approvals | CE, Nemko, UL/cUL |
| RoHS Compliant | Yes |
| Brand | CUI |
