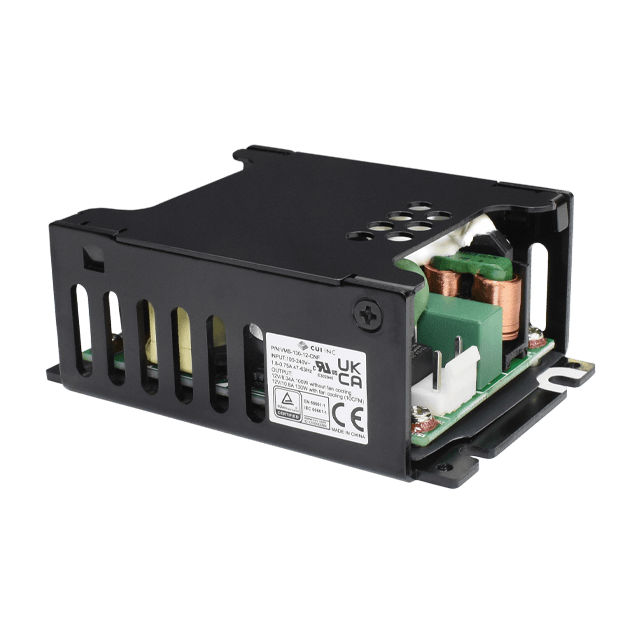

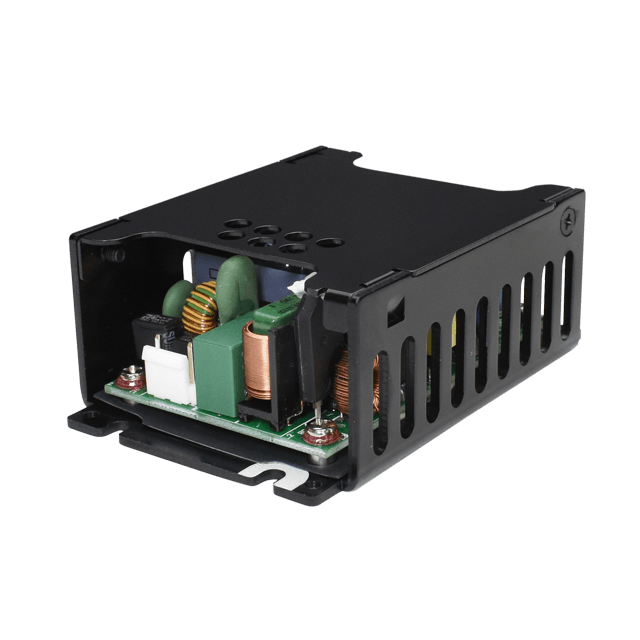

VMS-130-12-CNF AC-DC Converters
129.6 W AC-DC Power Supply, 12 VDC, 10.8 A Output, 80 ~ 264 VAC Input Range, Metal Case, Chassis Mount, Certified to IEC 60601
Stock Check
Country - USA
Features & Specifications
| Power (W) | 129.6 |
| Input Voltage Range (VAC) | 80 ~ 264 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 10.8 |
| Operating Temperature Range (ºC) | -30 ~ +70 |
| Cooling Type | Convection |
| Dimensions L x W x H (mm) | 91.4 x 64 x 34.5 |
| Dimensions L x W x H (in) | 3.6 x 2.52 x 1.36 |
| Mounting Type | Chassis Mount |
| Package | Metal Case |
| Features | Power Factor Correction (Active) |
| Market | Medical |
| Safety Standards | 60601 |
| Safety Approvals | CE, UKCA, UL/cUL |
| RoHS Compliant | Yes |
| Brand | CUI |
