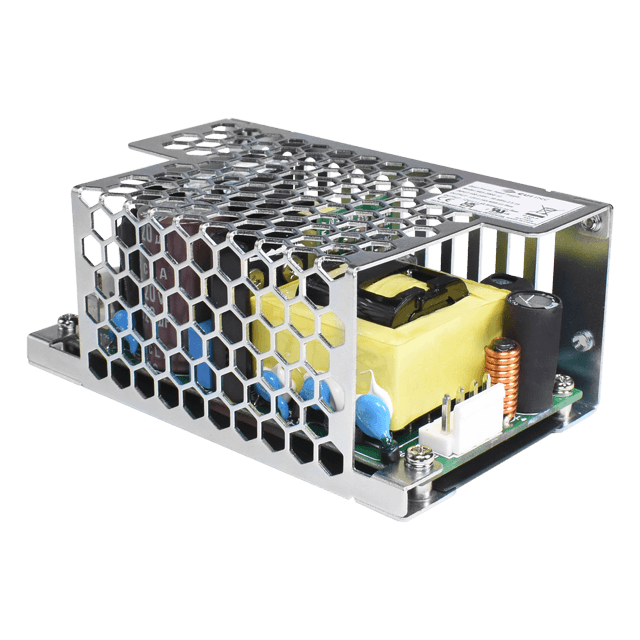

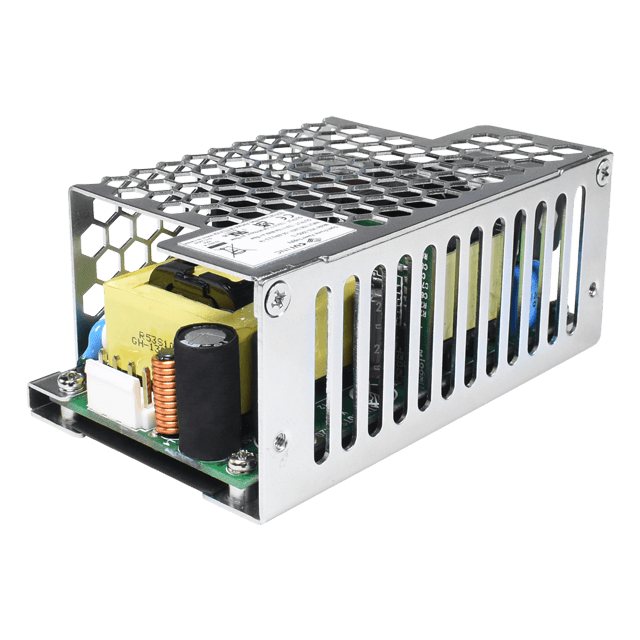

VGSM-200G-12 AC-DC Converters
192 W AC-DC Power Supply, 12 VDC, 16 A Output, 100 ~ 240 VAC Input Range, Metal Case, Chassis Mount, Certified to IEC 60601
Stock Check
Country - USA
Features & Specifications
| Power (W) | 192 |
| Input Voltage Range (VAC) | 100 ~ 240 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 16 |
| Operating Temperature Range (ºC) | -25 ~ +70 |
| Cooling Type | Convection, Fan |
| Dimensions L x W x H (mm) | 103.4 x 62 x 42.9 |
| Dimensions L x W x H (in) | 4.07 x 2.44 x 1.69 |
| Mounting Type | Chassis Mount |
| Package | Metal Case |
| Features | Power Factor Correction (Active) |
| Market | Medical |
| Safety Standards | 60601 |
| Safety Approvals | CE, UL/cUL |
| RoHS Compliant | Yes |
| Brand | CUI |
