VGS-50W Series
Recommended Replacements

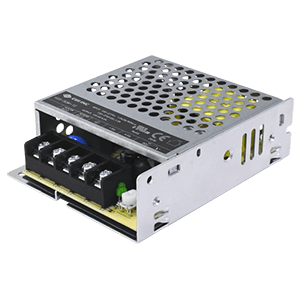

VOF-50B Series
The VOF-50B series is a family of open frame AC-DC power supplies housed in a compact 2” x 4” chassis mount package. Designed to meet the new UL/cUL 62368-1 standard for ICT and AV equipment, these 50 W open frame modules further feature no-load power consumption less than 0.3 W, high efficiency, and class II construction.
View Product
Features
- Meets EN 55032/CISPR32 Class B conducted/radiated emissions
- Input over voltage category III design
Specifications
- Power (W): 50 ~ 52.8
- Input Voltage Range (VAC): 85 ~ 305
- Output Voltage (VDC): 5 ~ 48
- Operating Temperature Range (ºC): -30 ~ +40, -30 ~ +50
- Cooling Type: Convection
- Safety Standards: 60335, 61558, 62368
- Safety Approvals: CE, UL/cUL
- RoHS Compliant: Yes
