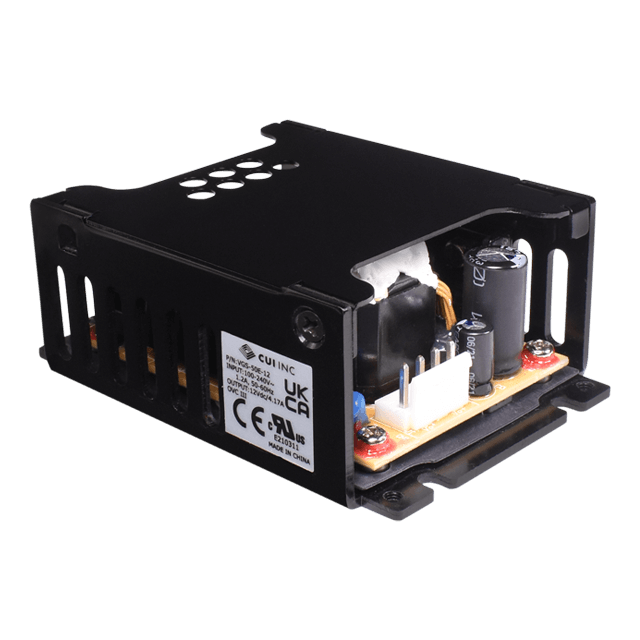

VGS-50E-15 AC-DC Converters
50 W AC-DC Power Supply, 15 VDC, 3.33 A Output, 85 ~ 264 VAC Input Range, Metal Case, Chassis Mount
Stock Check
Country - USA
Features & Specifications
| Power (W) | 50 |
| Input Voltage Range (VAC) | 85 ~ 264 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 15 |
| Output Current (A) | 3.33 |
| Operating Temperature Range (ºC) | -30 ~ +80 |
| Cooling Type | Convection |
| Dimensions L x W x H (mm) | 91.4 x 64 x 34.5 |
| Dimensions L x W x H (in) | 3.598 x 2.52 x 1.358 |
| Mounting Type | Chassis Mount |
| Package | Metal Case |
| Market | ITE |
| Safety Standards | 62368 |
| Safety Approvals | CE, UKCA, UL/cUL |
| RoHS Compliant | Yes |
| Brand | CUI |
