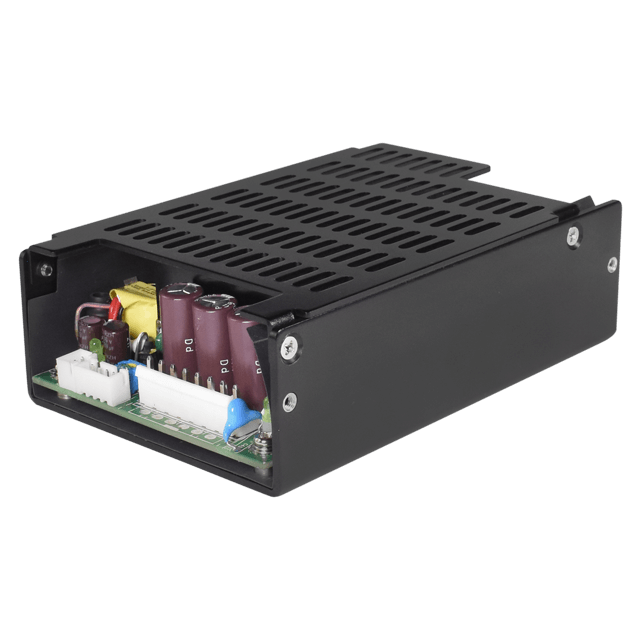

VGS-280B-36 AC-DC Converters
280 W AC-DC Power Supply, 36 VDC, 7.77 A Output, 90 ~ 264 VAC Input Range, Enclosed, Chassis Mount
Stock Check
Country - USA
Features & Specifications
| Power (W) | 280 |
| Input Voltage Range (VAC) | 90 ~ 264 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 36 |
| Output Current (A) | 7.77 |
| Operating Temperature Range (ºC) | -20 ~ +70 |
| Cooling Type | Convection, Fan |
| Dimensions L x W x H (mm) | 127 x 83.2 x 39.5 |
| Dimensions L x W x H (in) | 5 x 3.28 x 1.56 |
| Mounting Type | Chassis Mount |
| Package | Enclosed |
| Features | Remote On/Off |
| Market | ITE |
| Safety Standards | 62368 |
| Safety Approvals | CE, UL/cUL |
| RoHS Compliant | Yes |
| Brand | CUI |
