VGS-250C-CF Series

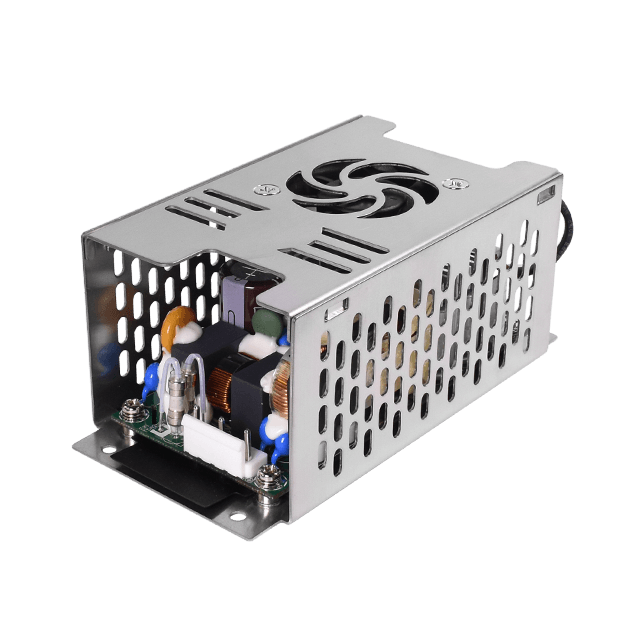

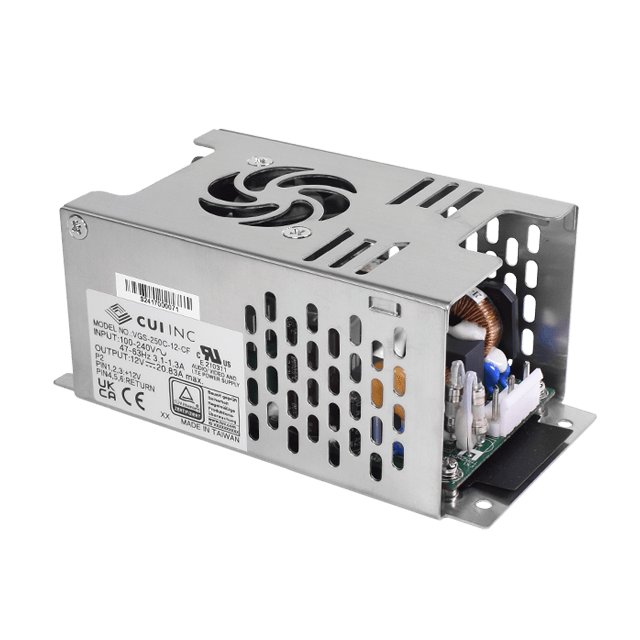

The VGS-250C-CF series is an AC-DC power supply in a compact metal case. This internal AC-DC power supply is 62368 certified and features 300 W peak power with 3 s duration and 3,000 isolation voltage, this rugged unit is ideal for industrial applications.
Features
  • Internal fan
  • 5000 meter operating altitude
  • Class
  • and Class II
  • 3000 Vdc isolation
  • 300 W peak power with 3 s duration
  • Up to 250 W continuous power
Specifications
  • Power (W): 250
  • Input Voltage Range (VAC): 100 ~ 240
  • Output Voltage (VDC): 12 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +70
  • Cooling Type: Fan
  • Dimensions L x W x H (mm): 63 x 121.6 x 50.8
  • Dimensions L x W x H (in): 2.48 x 4.79 x 2
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
