Not Recommended for New Design (NRND)

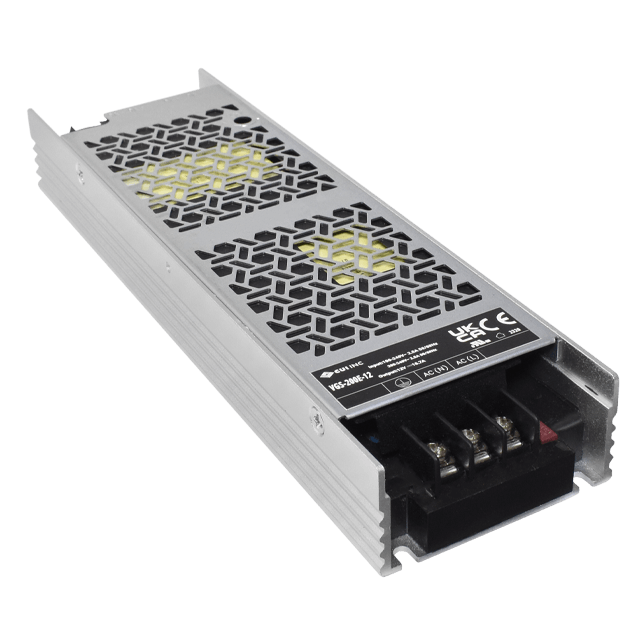

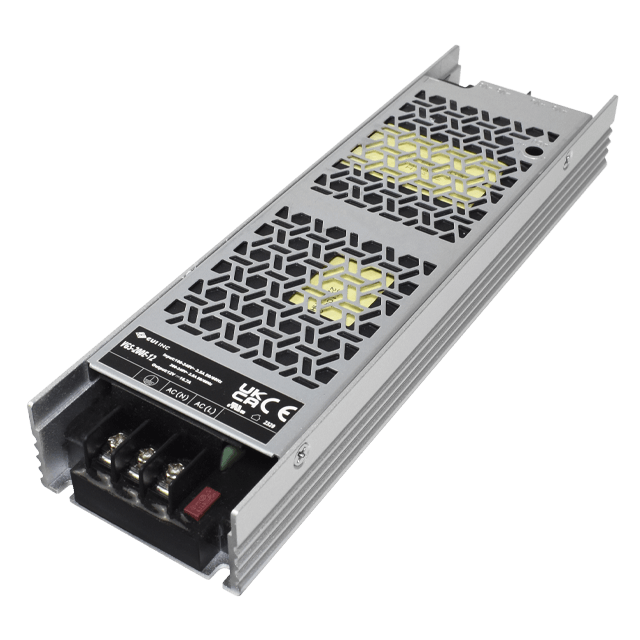

VGS-200E Series

This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please contact tech support below with any questions.
Features
  • Adjustable output voltage
  • CISPR32 EN 55032 Class B compliant
  • Over current protection (OCP)
  • Short circuit protection (SCP)
  • 5000 meter operating altitude
Specifications
  • Power (W): 200 ~ 201.6
  • Input Voltage Range (VAC): 85 ~ 305
  • Output Voltage (VDC): 5 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +70
  • Cooling Type: Baseplate, Convection
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
