New Product

VGS-150E Series

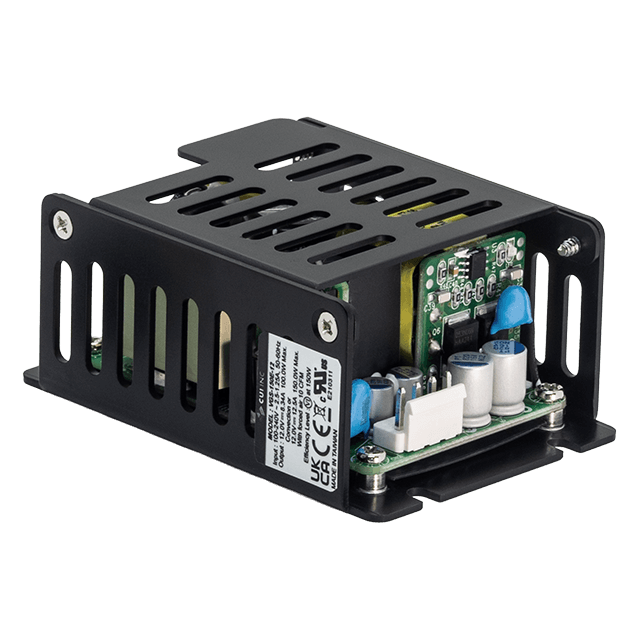

The VGS-150E series is a family of enclosed AC-DC power supply. Outputting 150W power, these modules feature a universal 90-264 Vac input voltage range and a wide operating temperature range of -20 to 70°C, making them ideal for ITE applications
Features
  • 3”x2” compact size, industrial design
  • Low no load power consumption (<0.150 W)
  • Main output power ON LED indicators
  • Short-circuit protection, over power protection, overvoltage protection
Specifications
  • Power (W): 150
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 12 ~ 54
  • Operating Temperature Range (ºC): -20 ~ +70
  • Dimensions L x W x H (mm): 90.6 x 64 x 39.2
  • Dimensions L x W x H (in): 3.57 x 2.52 x 1.55
  • Cooling Type: Convection, Fan
  • Safety Standards: 62368
  • Safety Approvals: CE, UL/cUL
  • RoHS Compliant: Yes
