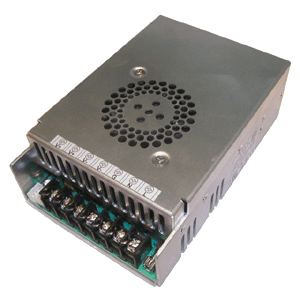

VF-S320-XXA-CF Series
Features
- 700 W peak power within a 500 µS duty cycle
- Metal top cover w/ fan
- Power factor correction (PFC)
- Output trim
- Power good signal
Specifications
- Power (W): 320
- Input Voltage Range (VAC): 90 ~ 180
- Output Voltage (VDC): 12 ~ 54
- Operating Temperature Range (ºC): 0 ~ +50
- Cooling Type: Fan
- Dimensions L x W x H (mm): 152.4 x 101.6 x 50.8
- Dimensions L x W x H (in): 6 x 4 x 2
- Safety Standards: 62368
- Safety Approvals: CE, GS, UL/cUL
- RoHS Compliant: Yes
