TET6000 (AC-DC/HVDC) Series

The SPSTET4-xx power-shelf solutions provide rectification, system management, and power distribution, while maintaining high reliability and offering flexibility for future expansion. The power shelf can be configured with up to six hot-swap capable TET4000-48-069RA AC/DC-DC power supplies that convert 3-phase AC mains power into a main output of 54.5 VDC for powering IT racks, OCP racks and Data centers. The shelf has an optional slot for a Network Attached Controller, providing control functions and monitoring through a 10/100 MB base Ethernet port. It can be connected directly to the data center management network.

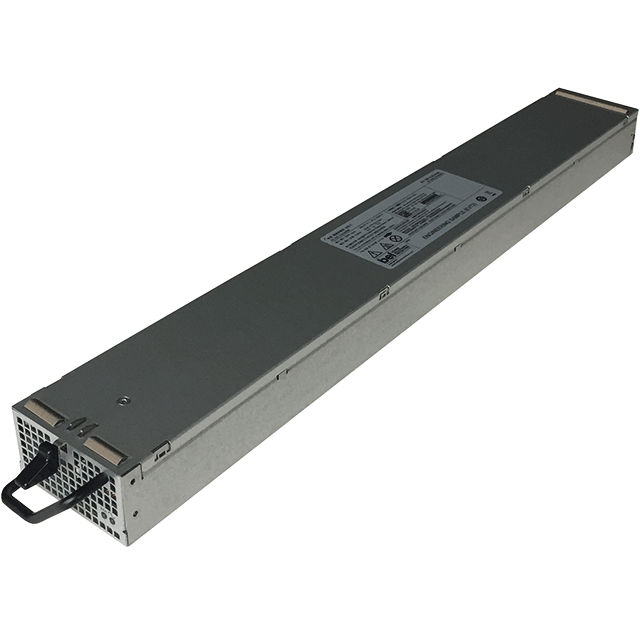

The ORV3 based SPSTET4V3-0X power shelf series provides rectification, system management, and power distribution functions. Each power shelf can be configured with up to six hot-swap capable, TET4000-48-069RAH or TET4800-48-069RA AC/DC-DC power modules that convert AC or HVDC input to 48 - 58 VDC output for powering OCP racks or 19" EIA racks in Datacenter applications. Shelves can be ordered with an optional Network Attached Controller, (NAC) which will enhance control functions and monitoring through a 10/100/1000 MB base Ethernet port allowing for a direct connect to the data center management network.

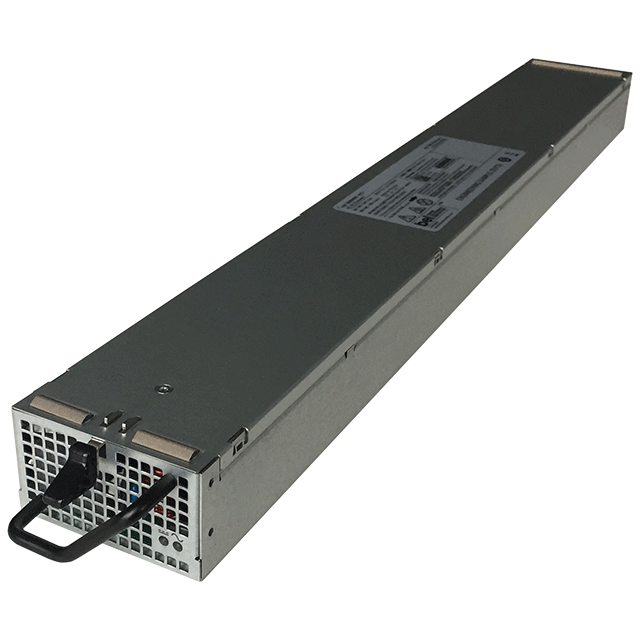

Bel Power Solutions TET4000-48-069RA is a 4000 Watt AC-DC power-factor-corrected (PFC) and DC-DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 48 VDC (42-58 VDC) for supplying 48 VDC power distribution in high performance and reliability data center equipment, servers, routers, and network switches. The TET4000-48-069RA meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
