PTU2000 (AC-DC) Series

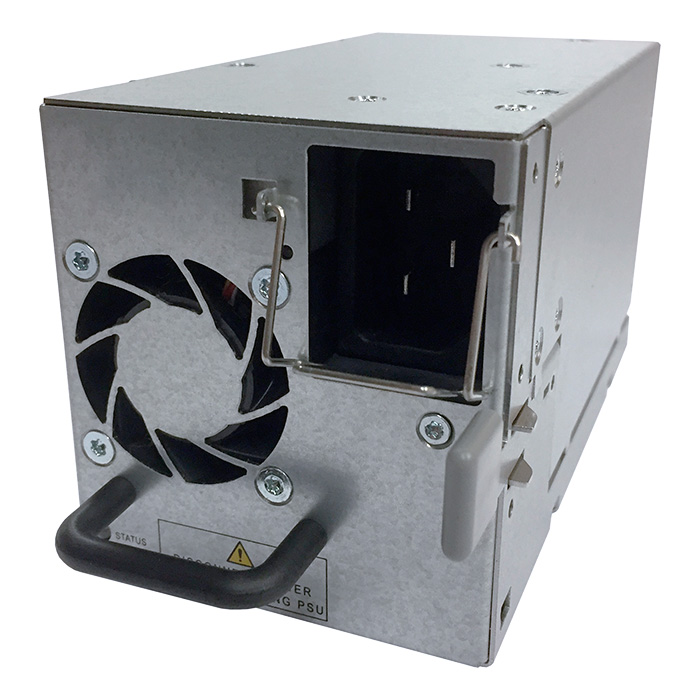

PTU2000-12-074NA is a 2000 W AC to DC, power-factorcorrected (PFC) power supply that converts standard AC power into a main output of +12 VDC. PTU2000-12-074NA utilizes full digital control architecture for greater efficiency, control and functionality.
Features
  • Best-in-class, 80 PLUS Platinum efficiency
  • AC input with power factor correction
  • Hot-plug capable
  • Full digital controls for improved performance
  • Power Management Bus communication interface for control, programming and monitoring
Specifications
  • Power (W): 2000
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): 0 ~ +65
  • Cooling Type: Fan
  • Dimensions L x W x H (mm): 168 x 73.5 x 80
  • Dimensions L x W x H (in): 6.61 x 2.89 x 3.14
  • Safety Standards: 62368
  • Safety Approvals: BIS, BSMI, CB, CE, CQC, CSA, Nemko
  • RoHS Compliant: Yes
