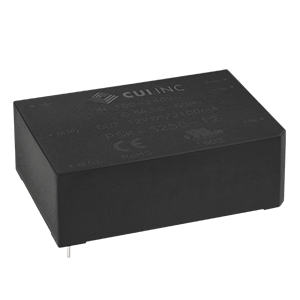

PSK-S25D Series
Recommended Replacements for PSK-S25D Series
PSK-S25B Series
The PSK-S25B series is a family of encapsulated AC-DC power supplies housed in a compact, board mount package. Outputting 25 W of continuous power, these single output, encapsulated modules feature 3 kVac isolation and a wide operating temperature range from -30 to 70ºC, making them ideal for space-constrained, low power ITE, industrial, and consumer electronic applications. The PSK-S25B series offers an optional Power Boost feature, which can double the rated current in order to support large transient loads, allowing you to design for nominal rather than peak power.
View ProductSpecifications
- Power (W): 13.53 ~ 25
- Input Voltage Range (VAC): 85 ~ 264
- Output Voltage (VDC): 3.3 ~ 48
- Safety Standards: 62368
- Safety Approvals: CE, UL/cUL
- RoHS Compliant: Yes
Features
- 13 ~ 25 W
- 85 ~ 264 Vac input (universal)
- 3 ~ 48 Vdc output options
- -40 to +85°C temperature range
- 4
- 000 Vac isolation
- CISPR32 EN 55032 Class B compliant
