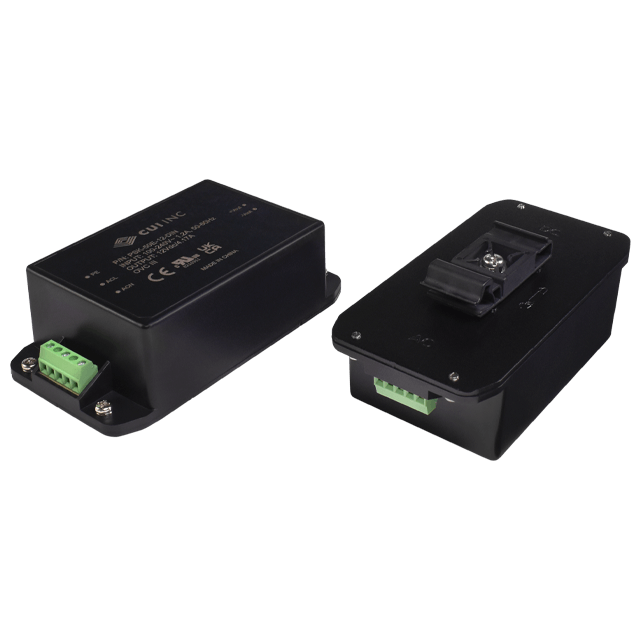

PSK-70E-DIN Series
Specifications
- Power (W): 50 ~ 70
- Input Voltage Range (VAC): 85 ~ 264
- Output Voltage (VDC): 5 ~ 48
- Operating Temperature Range (ºC): -30 ~ +80
- Cooling Type: Convection
- Dimensions L x W x H (mm): 55.2 x 106.6 x 45.3
- Dimensions L x W x H (in): 2.17 x 4.2 x 1.783
- Safety Standards: 62368
- Safety Approvals: CE, UKCA, UL/cUL
- RoHS Compliant: Yes
Features
- Class B emissions
- No-load power consumption < 0.15 W
- Class I and Class II
- OVC III
- 5000 meter operating altitude
