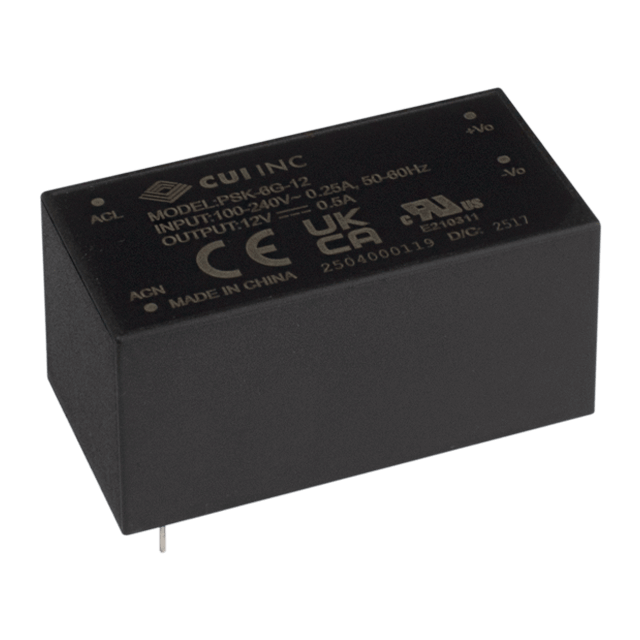

PSK-6G Series

The PSK-6G series is a family of Encapsulated AC-DC power supplies. Outputting 6W power, these modules feature a universal 90-264 Vac input voltage range and a wide operating temperature range of -40 ~ 80°C, making them ideal for enclosed and challenging applications.

Features

High efficiency up to 83%
Low no load power consumption (<0.075 W)
Certified to IEC/EN/UL 62368-1
Designed to meet IEC/EN 60335-1
Class II
Over voltage (OVC II & OVC III) and short-circuit protection
Operating altitude 5,000 m
CISPR/FCC Class B

Specifications

Power (W): 4.95 ~ 6
Input Voltage Range (VAC): 90 ~ 264
Output Voltage (VDC): 3.3 ~ 24
Operating Temperature Range (ºC): -40 ~ +80
Cooling Type: Convection
Dimensions L x W x H (mm): 41.1 x 21 x 20
Dimensions L x W x H (in): 1.62 x 0.83 x 0.787
Safety Standards: 62368
Safety Approvals: CE, UL/cUL
RoHS Compliant: Yes
