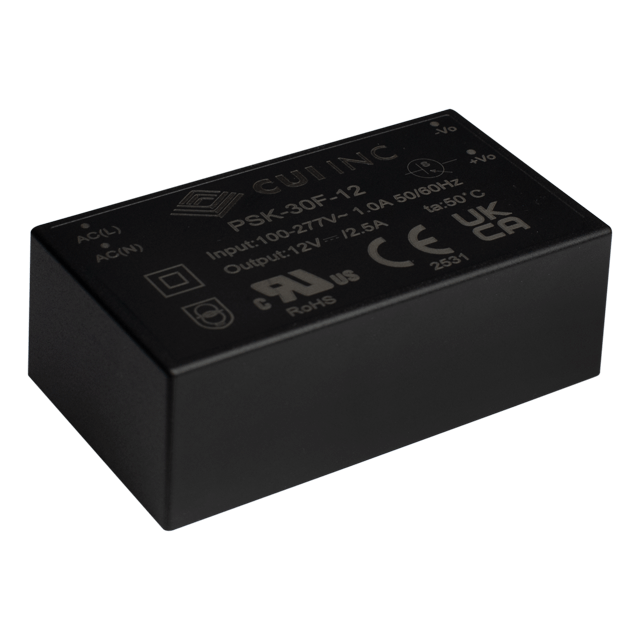

PSK-30F Series

The PSK-30F series is a family of encapsulated AC-DC power supplies. Outputting 30W power, these modules feature a universal 85-305 Vac input voltage range and a wide operating temperature range of -40 ~ 85°C, making them ideal for many applications.
Features
  • High efficiency up to 89%
  • Low stand-by power consumption (<0.3 W)
  • 4000 Vac isolation
  • Certified to IEC/EN/UL 62368-1
  • Designed to meet EN 61558-1 and EN 60335-1
  • Class II
  • Operating altitude 2,000 m
  • Class B emissions (EN55032/CISPR) with application circuit
  • Under voltage protection (UVP)
  • Short circuit protection (SCP)
  • Over current protection (OCP)
  • OVC III
Specifications
  • Power (W): 19.8 ~ 31
  • Input Voltage Range (VAC): 85 ~ 305
  • Input Voltage Range (VDC): 100 ~ 430
  • Output Voltage (VDC): 3.3 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +85
  • Cooling Type: Convection
  • Dimensions L x W x H (mm): 69.5 x 39 x 24
  • Dimensions L x W x H (in): 2.736 x 1.535 x 0.945
  • Safety Standards: 62368
  • Safety Approvals: CE, UL/cUL
  • RoHS Compliant: Yes
