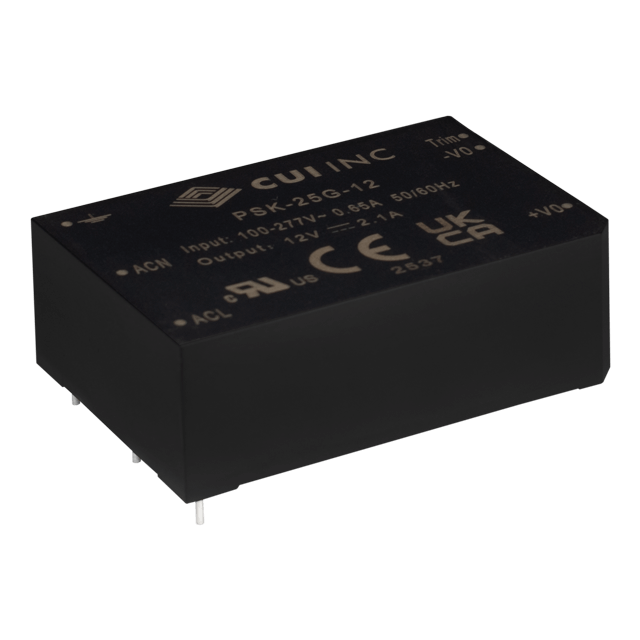

PSK-25G Series

The PSK-25G series is a family of encapsulated AC-DC power supplies housed in a compact, board mount package. These single output, encapsulated modules feature 4.2 kVac isolation and a wide operating temperature range from -45 to 85ºC, making them ideal for space-constrained, low power ITE, industrial, and consumer electronic applications.

Features

High efficiency up to 88%
Low stand-by power consumption (<0.1 W)
Operating altitude 5,000 m
Isolation voltage 4,200 Vac
Class B emissions (EN55032/CISPR) with application circuit
Over current protection (OCP)
Short circuit protection (SCP)
Over voltage protection (OVP)
Class I
OVC III operating altitude up to 3,000 m

Specifications

Power (W): 13.5 ~ 26.4
Input Voltage Range (VAC): 100 ~ 305
Input Voltage Range (VDC): 100 ~ 430
Output Voltage (VDC): 3.3 ~ 48
Operating Temperature Range (ºC): -40 ~ +85
Cooling Type: Convection
Dimensions L x W x H (mm): 70 x 48 x 23.5
Dimensions L x W x H (in): 2.756 x 1.89 x 0.925
Safety Standards: 62368
Safety Approvals: CE, UL/cUL
RoHS Compliant: Yes
