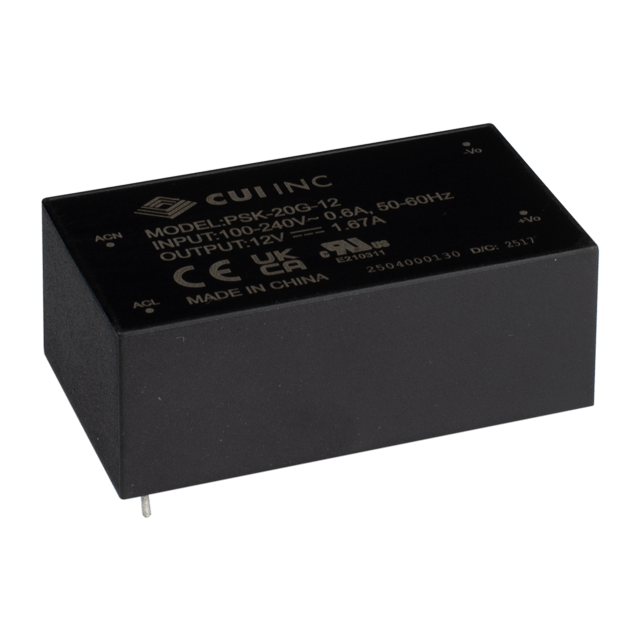

PSK-20G Series

The PSK-20G series is a family of Encapsulated AC-DC power supplies. Outputting 20W power, these modules feature a universal 90-264 Vac input voltage range and a wide operating temperature range of -40 ~ 80°C, making them ideal for rugged environments and challenging applications.

Features

High efficiency up to 87%
Low no load power consumption (<0.1 W)
Certified to IEC/EN/UL 62368-1
Designed to meet IEC/EN 60335-1
Class II
Over voltage (OVC II & OVC III) and short-circuit protection
Operating altitude 5,000 m
CISPR/FCC Class B

Specifications

Power (W): 20
Input Voltage Range (VAC): 90 ~ 264
Output Voltage (VDC): 5 ~ 48
Operating Temperature Range (ºC): -40 ~ +80
Cooling Type: Convection
Dimensions L x W x H (mm): 63 x 35.6 x 23.7
Dimensions L x W x H (in): 2.48 x 1.4 x 0.933
Safety Standards: 62368
Safety Approvals: CE, UL/cUL
RoHS Compliant: Yes
