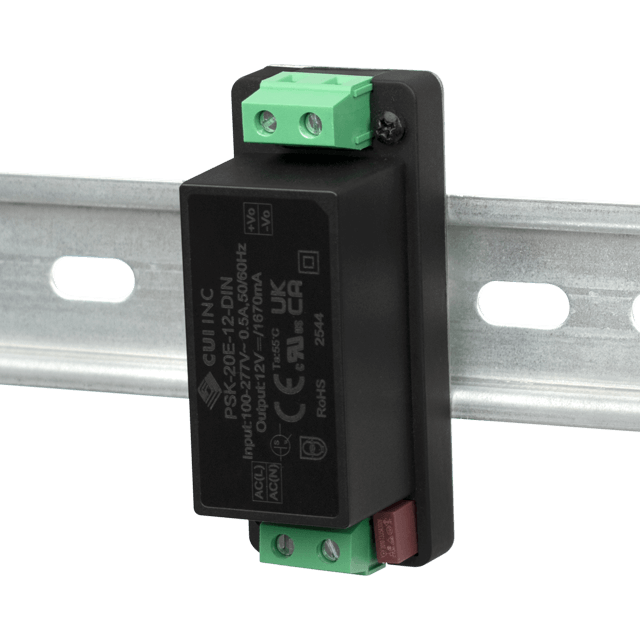

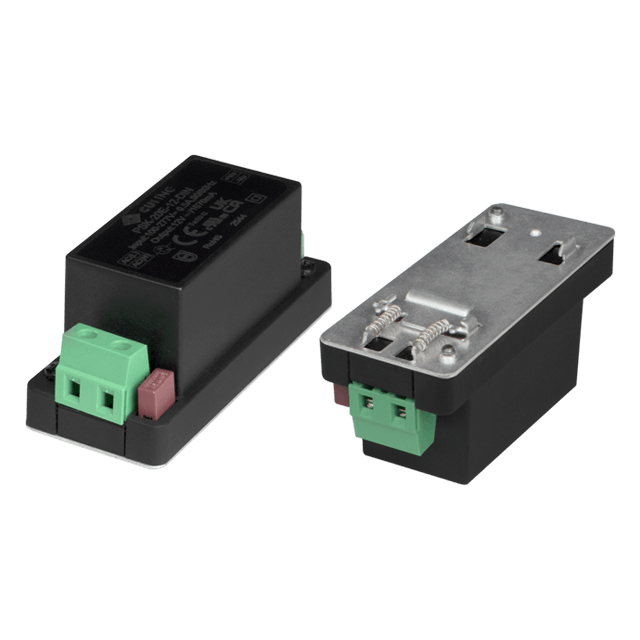

PSK-20E-12-DIN AC-DC Converters
20W AC-DC Power Supply, 12VDC, 85~305VAC, 1.67A, 1 output, Encapsulated, DIN Rail
Stock Check
Country - USA
Features & Specifications
| Power (W) | 20 |
| Input Voltage Range (VAC) | 85 ~ 305 |
| Input Voltage Range (VDC) | 100 ~ 430 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 1.67 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Cooling Type | Convection |
| Dimensions L x W x H (mm) | 76 x 31.5 x 37.4 |
| Dimensions L x W x H (in) | 2.992 x 1.24 x 1.472 |
| Mounting Type | DIN Rail |
| Package | Enclosed |
| Features | Over-voltage Category III |
| Market | ITE |
| Safety Standards | 62368 |
| Safety Approvals | CE, UL/cUL |
| RoHS Compliant | Yes |
| Brand | CUI |
