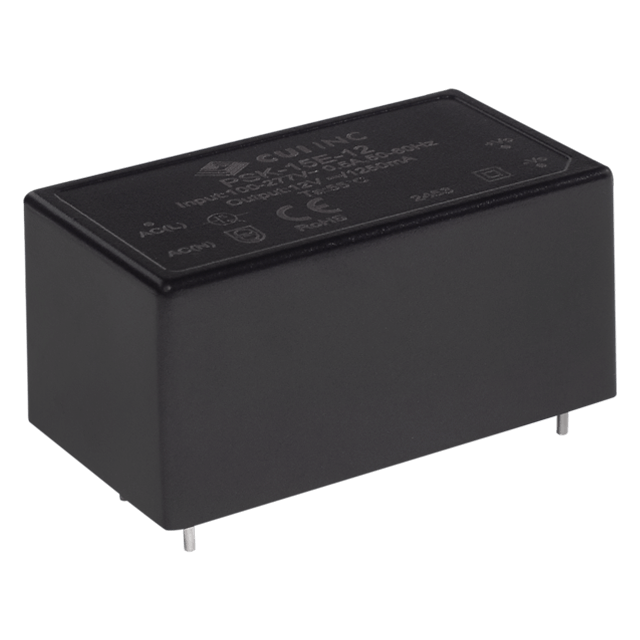

PSK-15E Series
Specifications
- Power (W): 13.2 ~ 15
- Input Voltage Range (VAC): 85 ~ 305
- Output Voltage (VDC): 3.3 ~ 24
- Operating Temperature Range (ºC): -40 ~ +85
- Cooling Type: Convection
- Dimensions L x W x H (mm): 45.7 x 25.4 x 21.5
- Dimensions L x W x H (in): 1.799 x 1 x 0.846
- Safety Standards: 62368
- Safety Approvals: CE, UL/cUL
- RoHS Compliant: Yes
Features
- Class B emissions (EN55032/CISPR) with application circuit
- Isolation voltage 4,000 Vac
- Class II
- OVC III
- Low stand-by power consumption (<0.05 W)
- 2,000 m operating altitude
- High efficiency up to 86%
- Over current protection (OCP)
- Short circuit protection (SCP)
