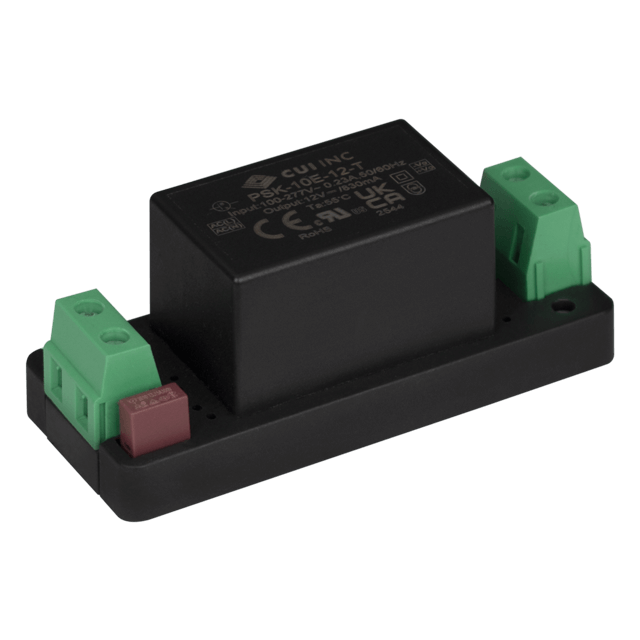

PSK-10E-T Series
Specifications
- Power (W): 8.6 ~ 10
- Input Voltage Range (VAC): 85 ~ 305
- Output Voltage (VDC): 3.3 ~ 24
- Operating Temperature Range (ºC): -40 ~ +85
- Cooling Type: Convection
- Dimensions L x W x H (mm): 76 x 31.5 x 30.3
- Dimensions L x W x H (in): 2.992 x 1.24 x 1.193
- Safety Standards: 62368
- Safety Approvals: CE, UL/cUL
- RoHS Compliant: Yes
Features
- EMI Class B emissions (EN55032/CISPR) without additional components
- Isolation voltage 4,000 Vac
- Over current protection (OCP)
- Short circuit protection (SCP)
- Over voltage protection (OVP)
- Input under voltage protection (UVLO)
- Class II
- Low stand-by power consumption (<0.1 W)
- 2,000 m operating altitude
- High efficiency up to 85%
- OVC III
