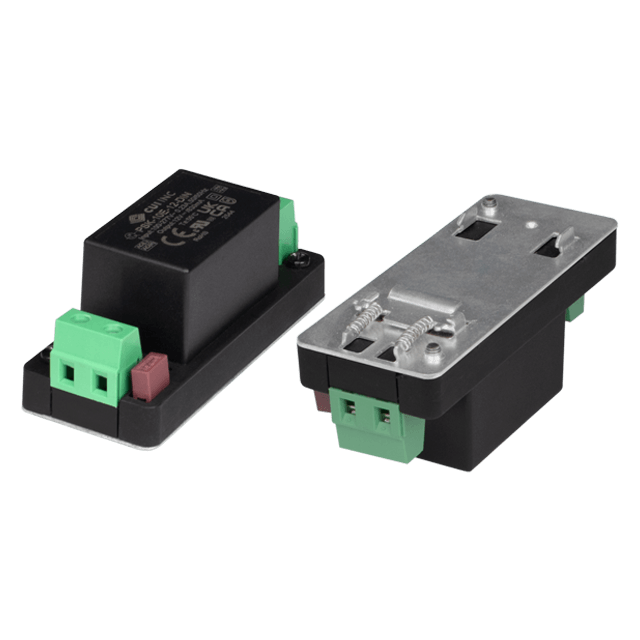

PSK-10E-DIN Series

The PSK-10E-DIN series is a family of encapsulated DIN Rail AC-DC power supplies. Outputting 10W power, these modules feature a universal 85-305 Vac input voltage range and a wide operating temperature range of -40 to 85°C, making them ideal for enclosed, rugged, and harsh applications.

Features

EMI Class B emissions (EN55032/CISPR) without additional components
Isolation voltage 4,000 Vac
Over current protection (OCP)
Short circuit protection (SCP)
Over voltage protection (OVP)
Input under voltage protection (UVLO)
Class II
Low stand-by power consumption (<0.1 W)
2,000 m operating altitude
High efficiency up to 85%
OVC III

Specifications

Power (W): 8.6 ~ 10
Input Voltage Range (VAC): 85 ~ 305
Output Voltage (VDC): 3.3 ~ 24
Operating Temperature Range (ºC): -40 ~ +85
Cooling Type: Convection
Dimensions L x W x H (mm): 76 x 31.5 x 34.9
Dimensions L x W x H (in): 2.992 x 1.24 x 1.374
Safety Standards: 62368
Safety Approvals: CE, UL/cUL
RoHS Compliant: Yes
