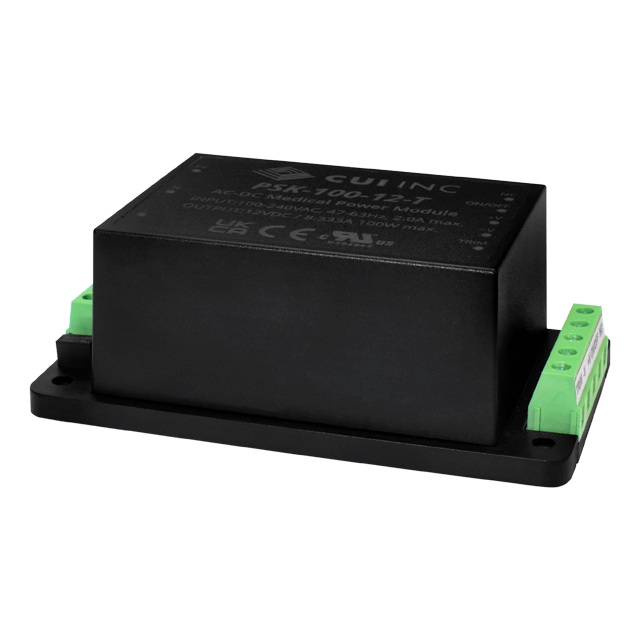

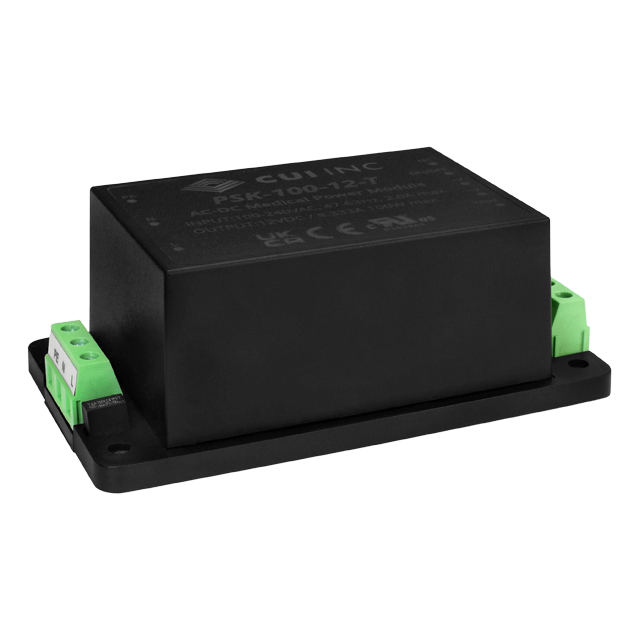

PSK-100-24-T AC-DC Converters
100 W AC-DC Power Supply, 24 VDC, 4.17 A Output, 90 ~ 264 VAC Input Range, Enclosed, Chassis Mount, Certified to IEC 60601
Stock Check
Country - USA
Features & Specifications
| Power (W) | 100 |
| Input Voltage Range (VAC) | 90 ~ 264 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 24 |
| Output Current (A) | 4.17 |
| Operating Temperature Range (ºC) | -30 ~ +70 |
| Cooling Type | Convection |
| Dimensions L x W x H (mm) | 112.9 x 64.7 x 40.5 |
| Dimensions L x W x H (in) | 4.44 x 2.55 x 1.59 |
| Mounting Type | Chassis Mount |
| Package | Enclosed |
| Features | Output Trimming (external resistance), Remote On/Off |
| Market | Medical |
| Safety Standards | 60601 |
| Safety Approvals | CE, UKCA, UL/cUL |
| RoHS Compliant | Yes |
| Brand | CUI |
