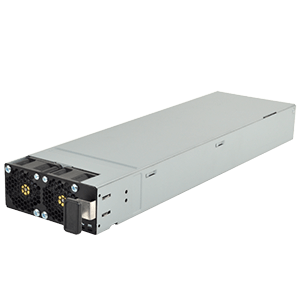

PSE-3000-54 Series
PSE-3000-54 Series
Discontinued

PSE-3000-54 Series

This product has been discontinued. If you have any questions or concerns, please contact our sales team.
Features
  • 80 PLUS Platinum Efficiency
  • PoE output isolation; (1500 Vrms to ground)
  • High power density - 33.48 W/in<sup>3</sup>
  • PMBus™ communication for monitoring and control
  • Dual fan forced cooling with speed control
  • Front to back (-F) and back to front (-B) airflow versions
  • Power factor correction (PFC)
  • Redundant (N+1) operation
  • Blind mate connections for hot-swap functionality
  • Constant power (CP) mode
  • Harmonic correction to EN61000-3-2
  • Class A
  • DROOP current sharing
  • Single I/O connector for AC input
  • DC output & signals
  • Remote on/off control
  • Power good signal
  • 3.3 V or 5 V standby voltage
Specifications
  • Power (W): 3000
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 54
  • Safety Approvals: CE, TUV
  • RoHS Compliant: Yes
