PLS1600 (AC-DC/HVDC) Series

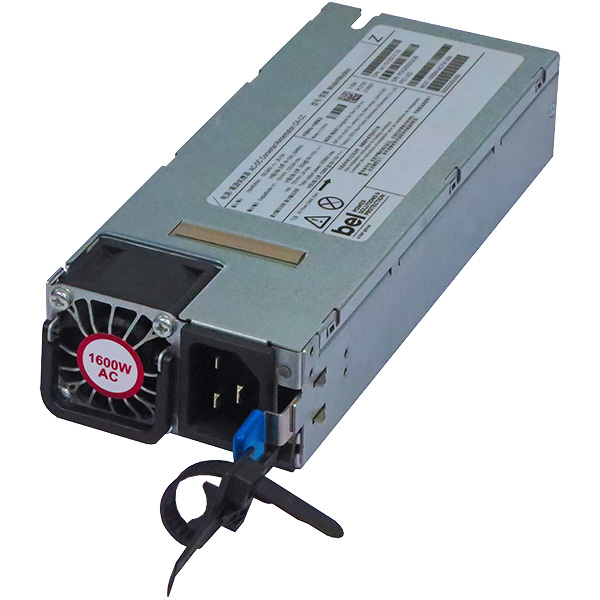

The PLS1600-12-080xA is a 1600 Watt AC to DC, power-factor-corrected (PFC) power supply that converts standard AC power into a main output of +12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The PLS1600-12-080xA utilizes full digital control architecture for greater efficiency, control, and functionality. This power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
Features
  • Hot-plug capable
  • Status LED with fault signaling
  • Parallel operation with active current sharing
  • Full digital controls for improved performance
  • AC input with active power factor correction
  • Power Management Bus communication interface for control, programming, and monitoring
Specifications
  • Power (W): 1600
  • Input Voltage Range (VAC): 90 ~ 264
  • Input Voltage Range (HVDC): 180 ~ 300
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): -5 ~ +55
  • Cooling Type: Fan
  • Safety Standards: 62368
  • Safety Approvals: BSMI, CB, CE, CQC, CSA, EAC, Nemko
  • RoHS Compliant: Yes
