PFS1200 (AC-DC/HVDC) Series
PFS1200 (AC-DC/HVDC) Series

PFS1200 (AC-DC/HVDC) Series

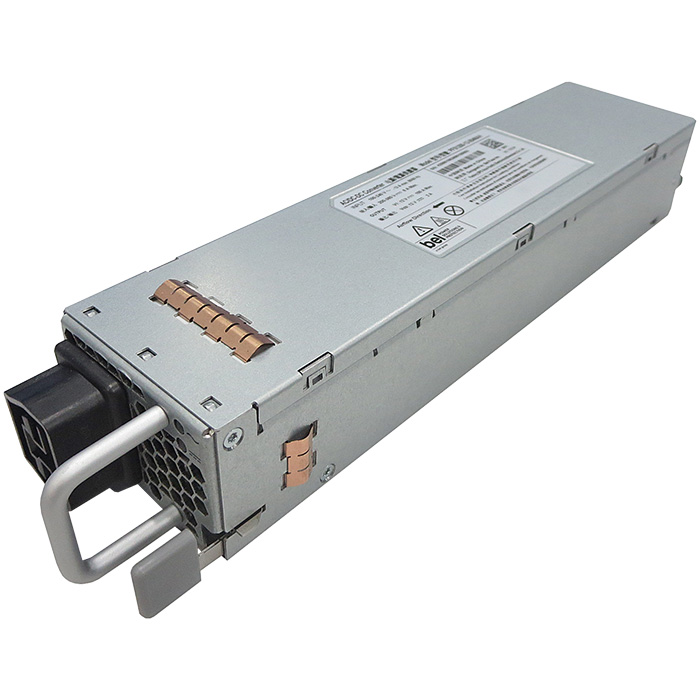

The PFS1200 Series is a 1200 Watt AC to DC power-factorcorrected (PFC) power supply that converts standard AC or HVDC power into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The PFS1200 Series meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
Features
  • Hot-plug capable
  • Parallel operation with active digital current sharing
  • Digital controls for improved performance
  • 256 Bytes of EEPROM for user information
  • 2 Status LEDs: OK and FAIL with fault signaling
  • I2C communication interface for control, programming and monitoring with Power Management Bus protocol and PSMI Protocol
Specifications
  • Power (W): 1200
  • Input Voltage Range (VAC): 90 ~ 264
  • Input Voltage Range (HVDC): 180 ~ 400
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): 0 ~ +45
  • Cooling Type: Fan
  • Safety Standards: 62368
  • Safety Approvals: BSMI, CB, CCC, CE, CSA, Nemko
  • RoHS Compliant: Yes
