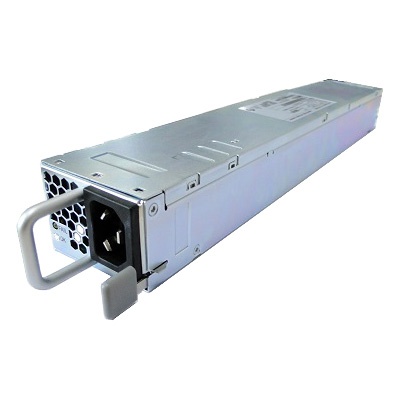

PFE1500 (AC-DC/HVDC) Series
Specifications
- Power (W): 1500
- Input Voltage Range (VAC): 90 ~ 264
- Input Voltage Range (HVDC): 180 ~ 350
- Output Voltage (VDC): 12
- Standby Output Voltage (VDC): 5 ~ 12
- Operating Temperature Range (ºC): 0 ~ +45
- Cooling Type: Fan
- Dimensions L x W x H (mm): 321.5 x 54.5 x 40
- Dimensions L x W x H (in): 12.65 x 2.14 x 1.57
- Safety Standards: 62368
- Safety Approvals: BSMI, CB, CCC, CE, CQC, CSA, EAC, Nemko
- RoHS Compliant: Yes
Features
- AC input with power factor correction
- Hot-plug capable
- Parallel operation with active digital current sharing
- Digital controls for improved performance
- I2C communication interface for control, programming and monitoring with Power Management Bus protocol and PSMI Protocol
