3D View

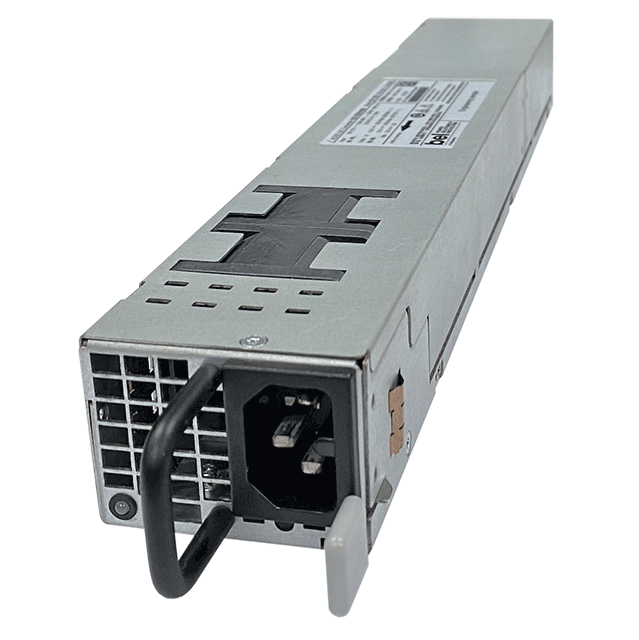

PFD1600-12-054NA AC-DC Converters
Front End AC-DC Power Supply | Power 1600W | Output 12VDC, 133A | Input 90-264VAC | Normal Airflow | IEC 60320-C14 type Input Connector | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 1600 |
| Input Voltage Range (VAC) | 90 ~ 264 |
| Input Voltage Range (HVDC) | 190 ~ 350 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 12 |
| Standby Output Voltage (VDC) | Programmable 3.3/5 |
| Output Current (A) | 133 |
| Operating Temperature Range (ºC) | 0 ~ +50 |
| Cooling Type | Fan |
| Dimensions L x W x H (mm) | 321.5 x 54.5 x 40 |
| Dimensions L x W x H (in) | 12.65 x 2.14 x 1.57 |
| Mounting Type | Rack Mount |
| Package | Enclosed |
| Connector | IEC 60320-C14 type |
| Options | Normal Airflow |
| Market | Networking & Data Centers |
| Safety Standards | 62368 |
| RoHS Compliant | Yes |
| Brand | Bel |
