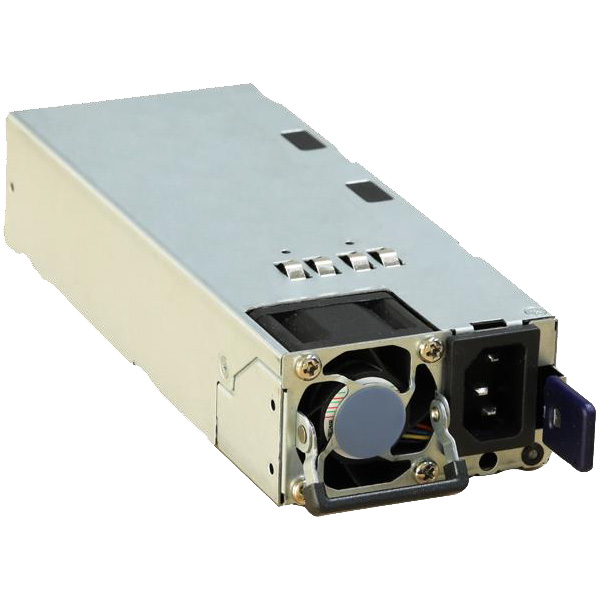

PEC1300 (AC-DC/HVDC Intel Standard CRPS) Series
Specifications
- Power (W): 1300
- Input Voltage Range (VAC): 90 ~ 264
- Input Voltage Range (HVDC): 180 ~ 300
- Output Voltage (VDC): 12
- Standby Output Voltage (VDC): 12
- Operating Temperature Range (ºC): 0 ~ +50
- Cooling Type: Fan
- Dimensions L x W x H (mm): 185 x 73.5 x 40
- Dimensions L x W x H (in): 7.28 x 2.89 x 1.57
- Safety Standards: 62368
- Safety Approvals: BSMI, CB, CE, EAC, KCC EMC, KCC Safety, TUV, UL
- RoHS Compliant: Yes
Features
- Intel Standard CRPS Form Factor
- High Power Density
- Supports N+1 Redundancy, Cold Redundancy, Internal ORing
- Black Box Recorder, Bootloader
- Clockwise and Counter-Clockwise Fan Rotation
- Supports Power Management Bus Communication Protocol
