MWLT450 Series
MWLT450 Series

MWLT450 Series

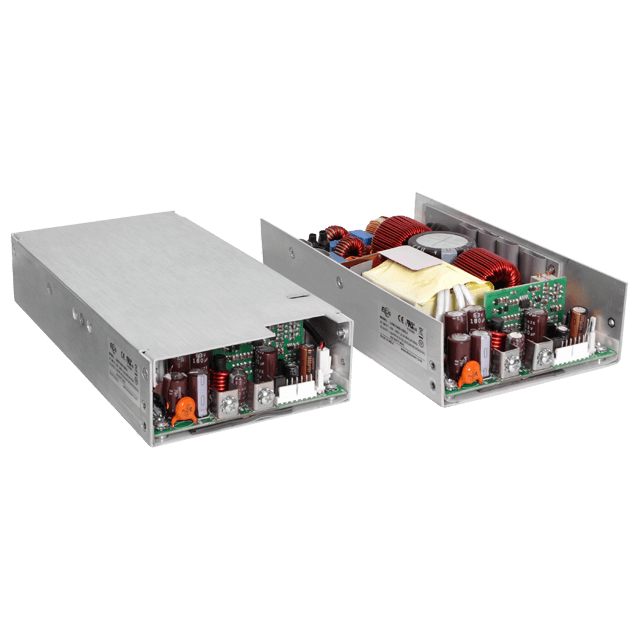

The EOS Power MWLT450 Series of open-frame medical power supplies, with its wide universal 90-264 VAC input range, is available at 450 W of output power and a variety of single output voltages. The MWLT450 series was designed to 3rd edition medical approvals and provides 2x MOPP (Means of Patient Protection) isolation for class 1 and class 2 installations. These medical power supplies are ideal for monitoring, home health equipment as well as surgical devices. Made In India Image
Features
  • Medical (BF) Safety Approvals - 3rd Edition
  • Side Fan or Top Fan Mounting Options Available
  • Current Sharing Option Available
  • ITE Safety Agency Approvals
  • RoHS Compliant
Specifications
  • Power (W): 275 ~ 450
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 5 ~ 48
  • Operating Temperature Range (ºC): 0 ~ +70
  • Cooling Type: Fan
  • Safety Standards: 60601
  • Safety Approvals: CB, CE, Nemko, UL
  • RoHS Compliant: Yes
