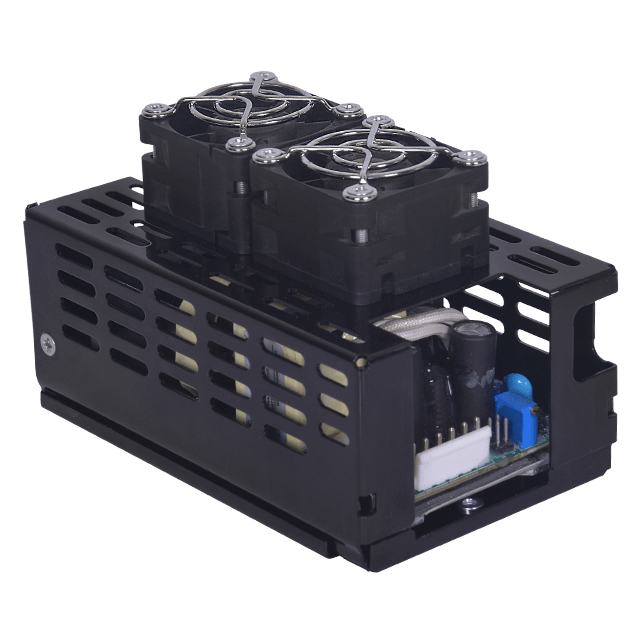

MFLS400-1312-TF AC-DC Converters
Medical AC-DC Power Supply | Power 300W | Output 12VDC, 25A | Input 85-264VAC | Fan Cooling | Cover Kit with Top FAN | JST | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 300 |
| Input Voltage Range (VAC) | 85 ~ 264 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 25 |
| Operating Temperature Range (ºC) | -40 ~ +70 |
| Cooling Type | Fan |
| Dimensions L x W x H (mm) | 134.366 x 77.216 x 82.296 |
| Dimensions L x W x H (in) | 5.29 x 3.04 x 3.24 |
| Mounting Type | Chassis Mount |
| Package | Cover Kit with Top Fan |
| Connector | JST Header |
| Market | Medical |
| Safety Standards | 60601 |
| Safety Approvals | CB, CE, Nemko, UL |
| RoHS Compliant | Yes |
| Brand | Bel |
