MAP110 Series

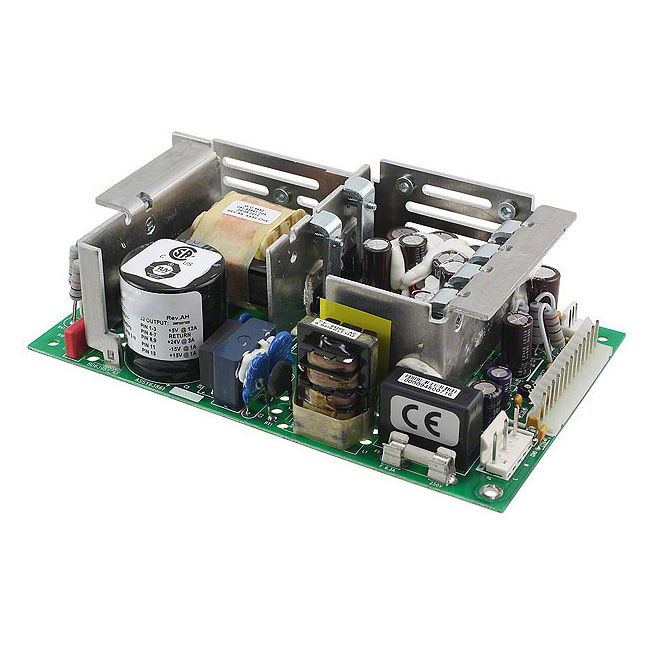

Bel Power Solutions MAP110 Series of power supplies combines low cost and universal input in a board-only power solution to meet industrial requirements. MAP110 series complies with EMC product standard EN 61204-3. All RoHS compliant units bear the CE Mark. Wide dynamic output current and fixed-frequency operation simplifies system level operation. The MAP110 series is configured to an international standard footprint. Input and output connections are made via popular single-row Molex connectors. Single output models feature wide-range output adjustability to meet a wide variety of standard and user-specific output voltage requirements.
Features
  • RoHS Lead-Solder-Exemption Compliant
  • Remote sense on single output units and main output of multiple output units
  • Options include, Power Fail signal, Chassis & Cover
  • Over temperature protection (OTP)
  • Over voltage protection (OVP)
Specifications
  • Power (W): 110
  • Input Voltage Range (VAC): 85 ~ 264
  • Output Voltage (VDC): 5 ~ 24
  • Operating Temperature Range (ºC): 0 ~ +70
  • Cooling Type: Fan
  • Safety Standards: 62368
  • Safety Approvals: CB, CE, CSA, Nemko
  • RoHS Compliant: Yes
