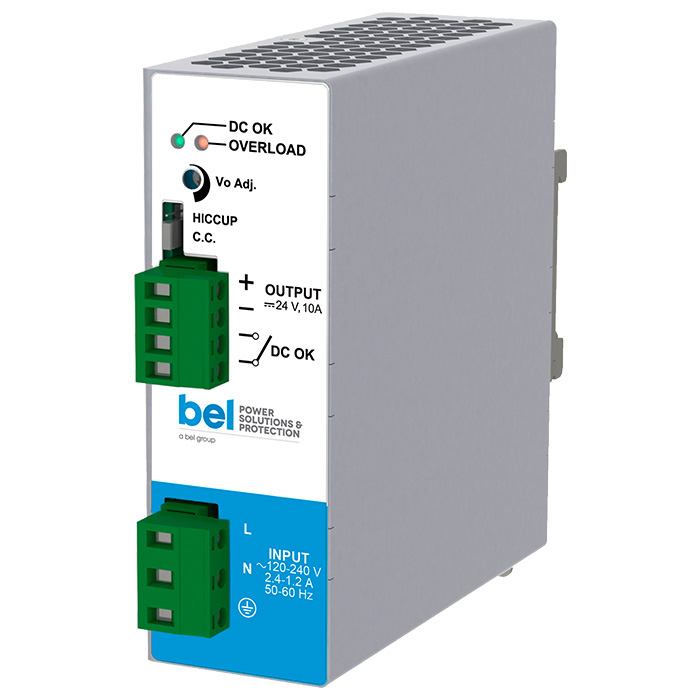

LDC240 Series
Specifications
- Power (W): 240
- Input Voltage Range (VAC): 90 ~ 264
- Output Voltage (VDC): 24
- Operating Temperature Range (ºC): -40 ~ +70
- Cooling Type: Convection
- Dimensions L x W x H (mm): 40 x 110 x 115
- Dimensions L x W x H (in): 1.57 x 4.33 x 4.52
- Safety Approvals: UL
- RoHS Compliant: Yes
Features
- Constant Current or Hiccup mode limitation, user settable
- Easy parallelable for power increase
- Includes models with internal Oring
- Active PFC for optimal efficiency with low THD
- Very compact size
