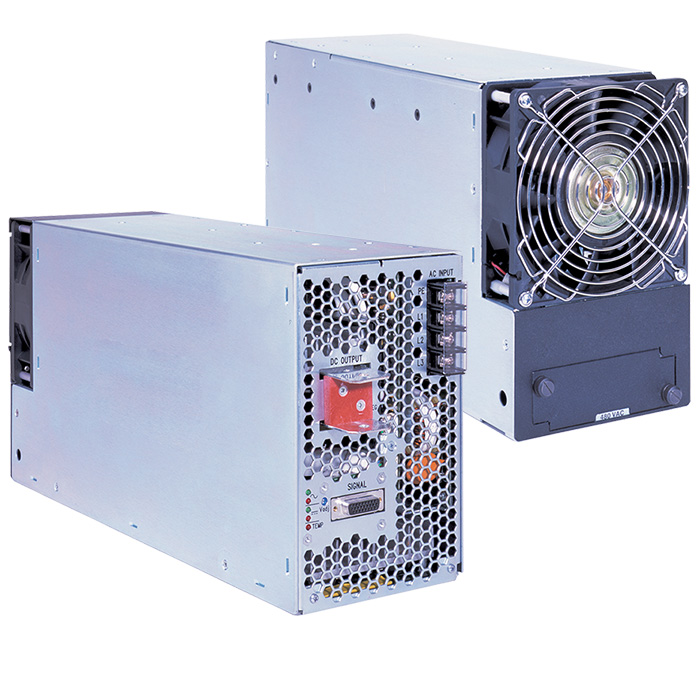

FXC7000 Series

The FXC7000 Series of standalone or rack mounted power systems provides true AC front-end capability to automatic test equipment, telecom, data communications, and other distributed power designs. The FXC systems may be paralleled up to 210 kW of output power and are intended for chassis mounted installations with bolted connections.
Features
  • Single-Wire Current Share or Droop Current Share
  • Remote Voltage Adjust and Current Monitoring
  • LED Supply Status Indicators
  • Front Panel Selectable-Input-Range
  • Over temperature protection (OTP)
  • Over voltage protection (OVP)
  • Over load protection (OLP)
Specifications
  • Power (W): 7000
  • Input Voltage Range (VAC): 180 ~ 528
  • Output Voltage (VDC): 48
  • Operating Temperature Range (ºC): 0 ~ +70
  • Cooling Type: Fan
  • Dimensions L x W x H (mm): 385.3 x 127 x 203.2
  • Dimensions L x W x H (in): 15.16 x 5 x 8
  • Safety Standards: 62368
  • Safety Approvals: CB, CE, CSA, Nemko
  • RoHS Compliant: Yes
