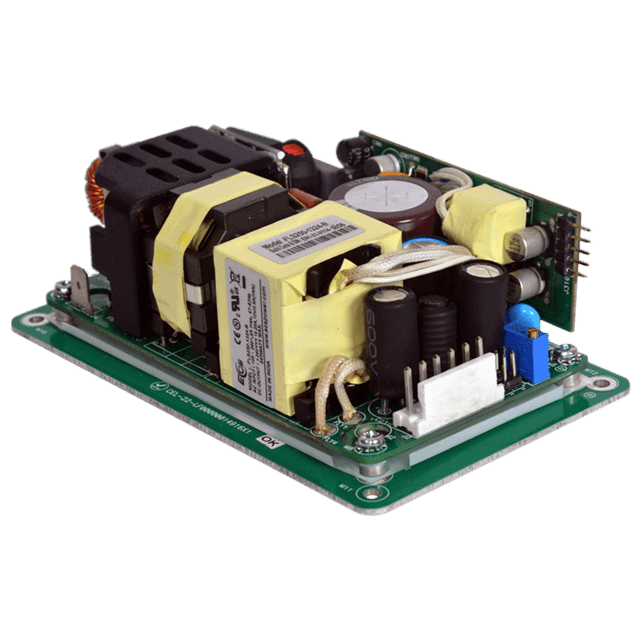

FLS250-1330-B AC-DC Converters
Industrial AC-DC Power Supply | Power 350 W | Output 30 VDC, 11.6 A | Input 85 ~ 264 VAC | Fan Cooling | Open Frame | JST | 3 X 5 Mounting option | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 350 |
| Input Voltage Range (VAC) | 85 ~ 264 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 30 |
| Output Current (A) | 11.6 |
| Operating Temperature Range (ºC) | -40 ~ +70 |
| Cooling Type | Fan |
| Dimensions L x W x H (mm) | 127 x 76.2 x 38.1 |
| Dimensions L x W x H (in) | 5 x 3 x 1.5 |
| Mounting Type | Chassis Mount |
| Package | Open Frame |
| Connector | JST Header |
| Options | 3" x 5" Mounting Plate |
| Market | ITE |
| Safety Standards | 62368 |
| Safety Approvals | CB, CE, CSA, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
