BPEU2004 Series

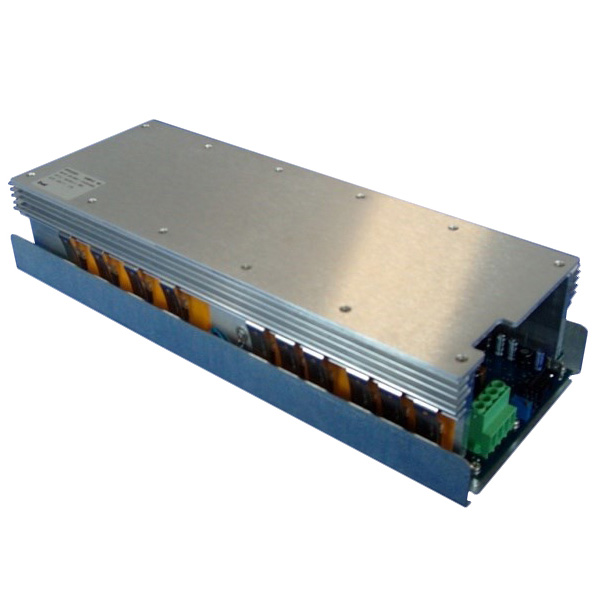

BPEU2451 Series is AC-DC Converter with output power of 3000W and multiple outputs. Main output of +30 to +50 / 40 A and auxiliary output of 24 V/3.5 A. This series have universal input voltage - single phase 220 / 240 VAC. Other standard features include current and voltage monitoring, overvoltage, overtemperature as well as short circuit protection. These power supplies were designed to power radio-frequency power amplifier (RFPA) applications in the Broadcasting industry.

BPEU2452 Series is AC-DC Converter with output power of 2000W and multiple outputs. Main output of 48V / 40 A and auxiliary output of 12.5 V/1 A. This series have universal input voltage - single phase 220 / 240 VAC. Other standard features include current and voltage monitoring, overvoltage, overtemperature as well as short circuit protection. These power supplies were designed to power radio-frequency power amplifier (RFPA) applications in the Broadcasting industry.

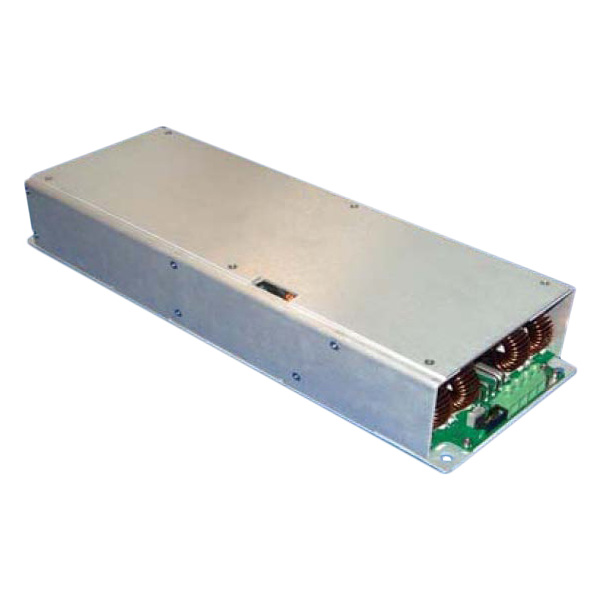

BPEU3000 Series is AC-DC Converter with output power of 3000 W and multiple outputs. Main outputs 4x +50 V / 23.5 A (Imax total 58 A) and auxiliary outputs of +48 V / 2.5 A, +5 V / 0.5 A. This series have single phase input voltage of 230 VAC and three phase input voltage of 208 VAC. Other standard features include current and voltage monitoring, overvoltage, overtemperature as well as short circuit protection. These power supplies were designed to power radiofrequency power amplifier (RFPA) applications in the broadcasting industry.

BPEU2000 Series is AC-DC Converter with output power of 2000W and multiple outputs. Adjustable output of +40 ~ +50 V / 40 A and auxiliary output of 12 V / 0.5 A. This series have universal input voltage - single phase 230 VAC. Other standard features include current and voltage monitoring, overvoltage, overtemperature as well as short circuit protection. These power supplies were designed to power radio-frequency power amplifier (RFPA) applications in the Broadcasting industry.
