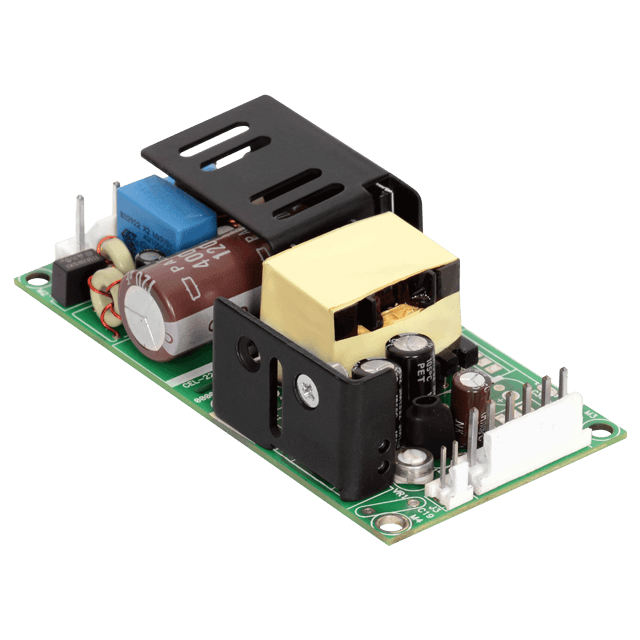

WLT40 Series

The EOS Power WLT40 Series of open-frame power supplies, with its wide universal 90-264 VAC input range and high power density, is available at 40 W of output power and a variety of single and multiple output voltages. The high efficiency and high power density of the WLT40 family ensures minimal power loss in end-use equipment, thereby facilitating higher reliability, easier thermal management and meets regulatory approvals for environmentally friendly end products. These power supplies are ideal for telecom, datacom, industrial equipment and other applications. Made In India Image

Features

No Minimum Load Required - Single Output Models
IEC Protection Class Options
ITE Safety Agency Approvals
RoHS Compliant
CE Marked
Cover Kit, Base Plate, U-Channel, L-Bracket package options avaliable

Specifications

Power (W): 40
Input Voltage Range (VAC): 90 ~ 264
Output Voltage (VDC): 3.3 ~ 48
Operating Temperature Range (ºC): -20 ~ +50
Cooling Type: Convection
Dimensions L x W x H (mm): 101.6 x 50.8 x 33.02
Dimensions L x W x H (in): 4 x 2 x 1.3
Safety Standards: 62368
Safety Approvals: CB, CE, Nemko, UL
RoHS Compliant: Yes
