PTT1600 (AC-DC/HVDC) Series
PTT1600 (AC-DC/HVDC) Series

PTT1600 (AC-DC/HVDC) Series

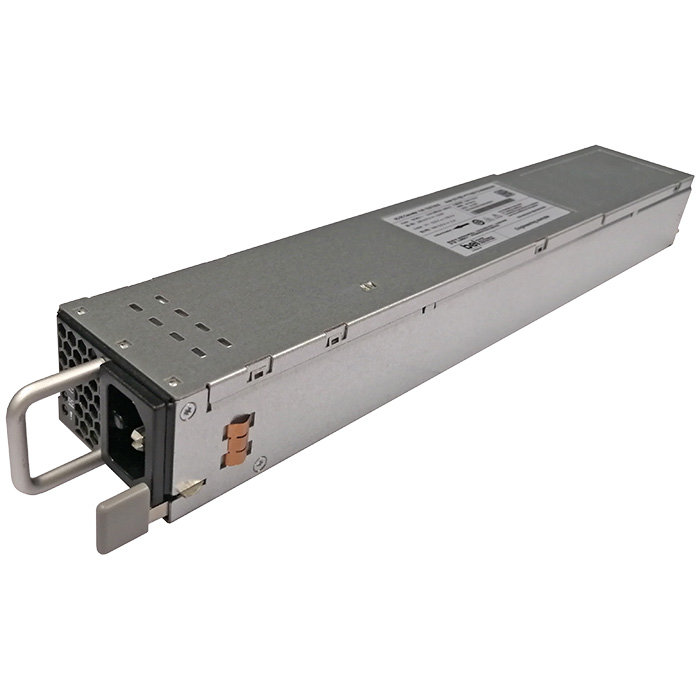

PTT1600-12-054xA is a series of 1600 Watt AC to DC power-factor-corrected (PFC) power supplies that convert standard AC or HVDC power into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. PTT1600-12-054xA series meet international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
Features
  • 80 Plus Platinum Efficiency
  • AC input with power factor correction
  • Hot-plug capable
  • Digital controls for improved performance
  • Off-line bootloader function for ISP
  • IBM PLD
  • Support PSU health check when system request
  • I2C communication interface for control, programming and monitoring with Power Management Bus protocol
Specifications
  • Power (W): 1600
  • Input Voltage Range (VAC): 90 ~ 264
  • Input Voltage Range (HVDC): 180 ~ 350
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): 0 ~ +50
  • Cooling Type: Fan
  • Safety Standards: 62368
  • Safety Approvals: BSMI, CB, CE, CQC, CSA, Nemko
  • RoHS Compliant: Yes
