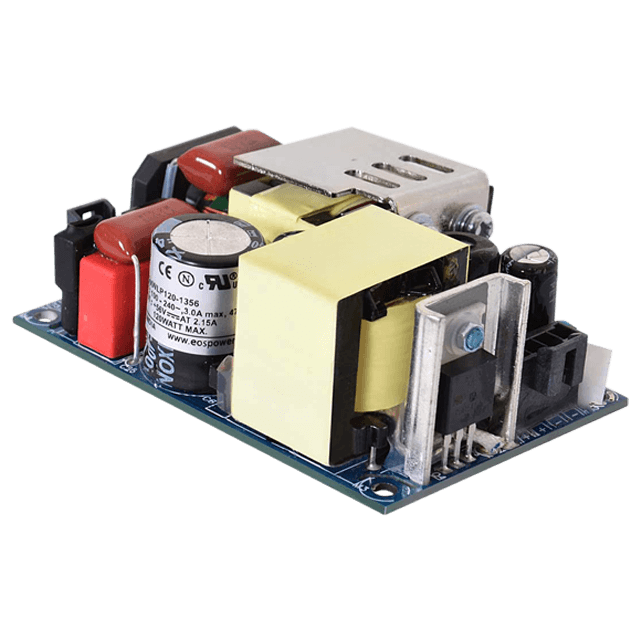

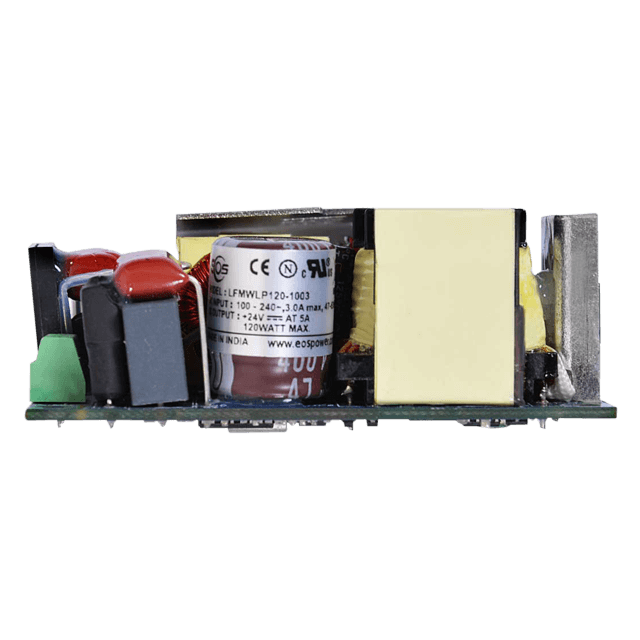

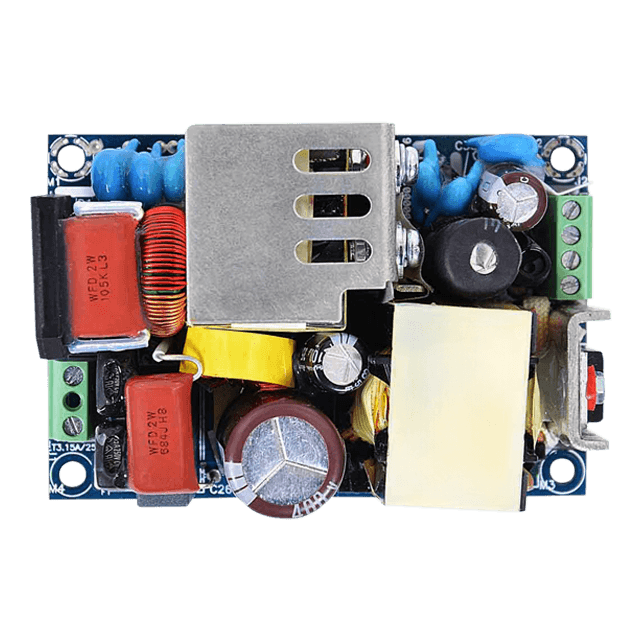

The EOS Power MWLP120 Series of open frame medical power supplies feature a wide universal AC input range of 85 V - 264 VAC, offering 120 W of output power in a compact footprint, with a variety of isolated single output voltages. The MWLP120 series was designed to 3rd edition medical approvals and provides 2x MOPP (Means of Patient Protection) isolation for Class I and Class II installations. These power supplies are ideal for medical, telecom, datacom, industrial equipment and other applications. Made In India Image
Features
  • Dual Fusing
  • Thermal Shut-Down Feature
  • Class II Option Available
  • RoHS Compliant
  • CE Marked
Specifications
  • Power (W): 120
  • Input Voltage Range (VAC): 85 ~ 264
  • Output Voltage (VDC): 12 ~ 58
  • Operating Temperature Range (ºC): -40 ~ +70
  • Cooling Type: Fan
  • Safety Standards: 60601
  • Safety Approvals: CB, CE, Nemko, UL
  • RoHS Compliant: Yes
