EPG300 Series
EPG300 Series

EPG300 Series

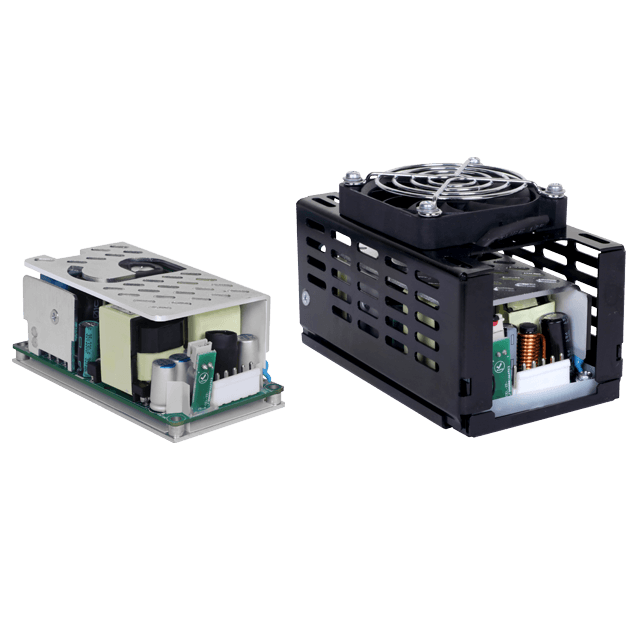

The EOS Power EPG300 Series of AC-DC power supplies accommodate a universal input voltage of 90 – 264 VAC, delivering up to 300 W of output power with forced air cooling. The power supplies are available in six single output voltages ranging from 12 V to 58 V. The EPG300 Series can be used in a broad array of space constrained applications in which minimal power loss and easy thermal management are required. RoHS compliant and CE marked, the power supplies are safety agency certified and meet the latest regulatory requirements. Made In India Image
Features
  • New Efficient GaN power technology
  • Thermal shut-down feature
  • Available with metal enclosures / accessories
Specifications
  • Power (W): 300
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 12 ~ 58
  • Operating Temperature Range (ºC): -40 ~ +70
  • Cooling Type: Convection, Fan
  • Safety Approvals: CB, CE, NEMKO, UL
  • RoHS Compliant: Yes
