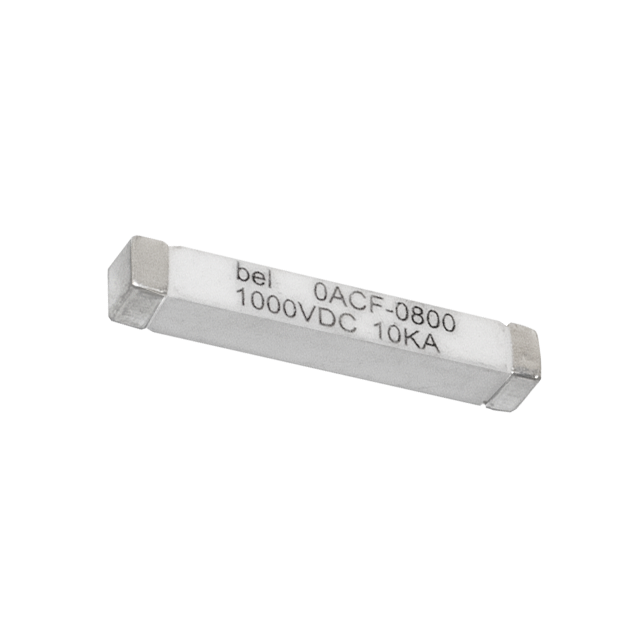

0ACF Series is AEC-Q200 Compliant surface mount fast acting fuse. These fuses have 1000VDC high voltage, high breaking capacity, 800mA through 3A current rating, -40ºC to +105ºC operating temperature and special physical size 5x5x32mm.
Features
  • Surface Mount
  • Fast Acting
  • High Voltage Ratings
  • RoHS Compliant
Specifications
  • Fuse Type: Brick Fuse
  • Current (A): 0.8 ~ 3
  • Voltage (VDC): 1000
  • Mounting Type: Surface Mount
  • Response Time: Fast Blow
  • AEC-Q200 Compliant: Yes
  • RoHS Compliant: Yes
