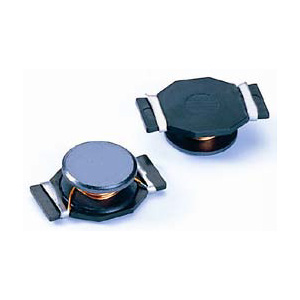

SC4020FH-4R7 SMD Inductors
High Current Unshielded SMD Power Inductor, 4.7 uH, 7.7 A, 0.015 Ω DCR, Test Frequency 100 KHz
Stock Check
Country - USA
Features & Specifications
| Inductance (uH) | 4.7 |
| Current (A) | 7.7 |
| DCR (Ohm) | 0.015 |
| Current Saturation - Isat (A) | 7.7 |
| Operating Temperature (ºC) | -40 ~ +125 |
| Length (mm) | 19.5 |
| Test Frequency (KHz) | 100 |
| Width (mm) | 13.3 |
| Mounting Type | Surface Mount |
| Height (mm) | 6.9 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Shielding | No |
| Brand | Signal Transformer |
| AEC-Q200 Compliant | No |
