F1F3 Series
F1F3 Series

F1F3 Series

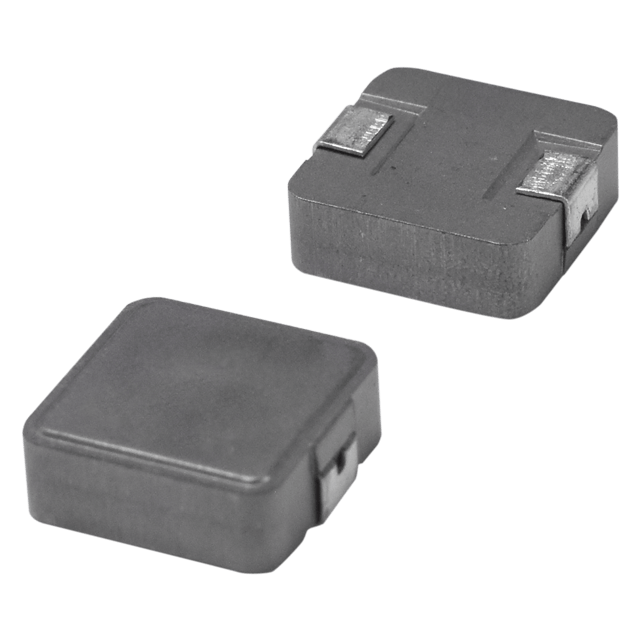

Introducing Signals High Power Shielded Inductor series, meticulously designed to meet the rigorous standards of the AEC-Q200 Grade 1 automotive quality certification. Engineered for superior performance in high-reliability applications, this inductor is ideal for automotive, industrial, and higher power electronic systems that demand robust and efficient inductive components. The F1F3-1005/1054 is the third in the High Power Shielded Inductor (Automotive) series with height profiles of 4.80mm and 5.20mm a footprint of 11.00mm x 10.00mm and a range of inductances/currents. Why Choose Our Inductor? Our high-power shielded inductor is the perfect choice for engineers and designers looking for reliability, efficiency, and compliance with the stringent AEC-Q200 Grade 1 standard. Whether you're developing next-generation automotive systems or industrial power solutions, our inductor provides the performance and durability you need to ensure long-term success.
Features
  • AEC-Q200 Grade 1
  • High Power Handling (or High saturation Current)
  • Shielded Construction
  • Wide Temperature Range
  • Low DCR (DC Resistance)
  • Compact Design
Specifications
  • Inductance (uH): 0.22 ~ 47
  • Current (A): 3 ~ 40
  • Operating Temperature (ºC): -55 ~ +155
  • Mounting Type: Surface Mount
  • Shielding: Yes
  • AEC-Q200 Compliant: Yes
  • RoHS Compliant: Yes
