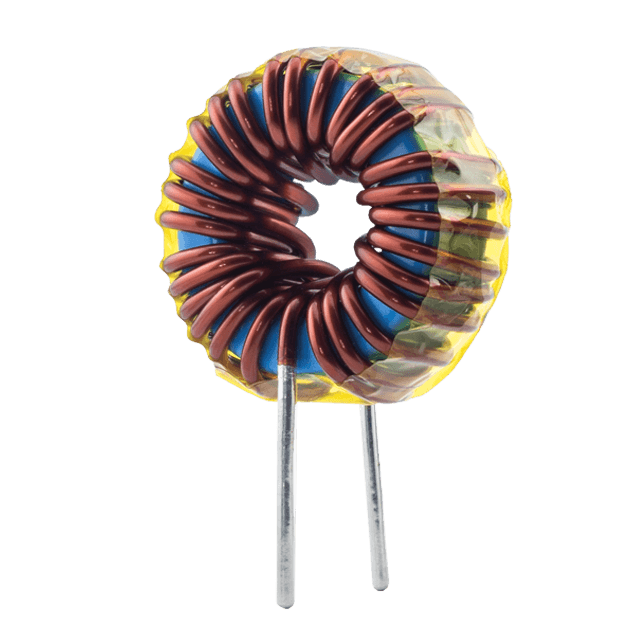

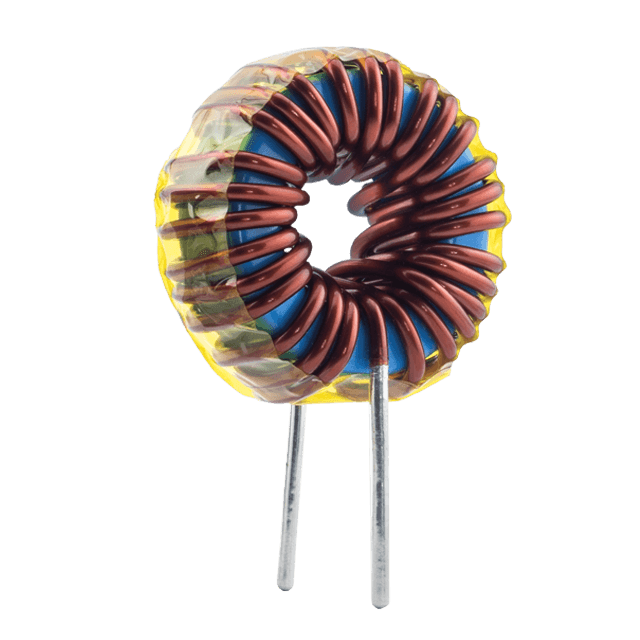

SDMTC-18A-311-H Common Mode Chokes
Differential Mode High Temperature Toroidal Choke, 312 µH, 18 A, 28.5 mΩ DCR, Class H, -40°C ~ +180°C, Through Hole Mount, Horizontal orientation, AEC-Q200
Stock Check
Country - USA
Features & Specifications
| Inductance (mH) | 0.312 |
| Current (A) | 18 |
| Current Saturation - Isat (A) | 32 |
| DCR (Ohm) | 0.0285 |
| Operating Temperature (ºC) | -40 ~ +180 |
| Length (mm) | 58.42 |
| Width (mm) | 58.42 |
| Height (mm) | 47 |
| Mounting Type | Through Hole Mount |
| Packaging | Tray |
| Orientation | Horizontal |
| Lead Thickness (mm) | 2.03 |
| Lead Length (mm) | 25.4 |
| AEC-Q200 Compliant | Yes |
| RoHS Compliant | Yes |
| Brand | Signal Transformer |
