SPSTET4-11

Share

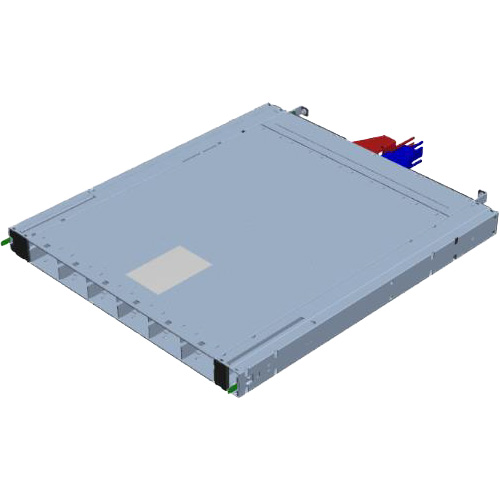

AC-DC Power Shelf | Power 24000W | 3-phase | 200 – 240 / 346 – 415 VAC Line to Line input with Neutral line Single output blade for +54.5 V output | Offset Short Bus Bar

Email Form

AC-DC Power Shelf | Power 24000W | 3-phase | 200 – 240 / 346 – 415 VAC Line to Line input with Neutral line Single output blade for +54.5 V output | Offset Short Bus Bar

Email Form

Max. Power (W) 24000
Input Voltage (VAC) 200–240 / 346–415
Output Voltage (VDC) 54.5
Max. Output Current (A) 440
No. of Output Busbars 1 (Offset Short)
Redundancy 6+0
Operating Temperature (ºC) 0 to 55
NAC Included NO
Dimensions LxWxH (mm) 602 x 535 x 47
RoHS Compliant Yes
