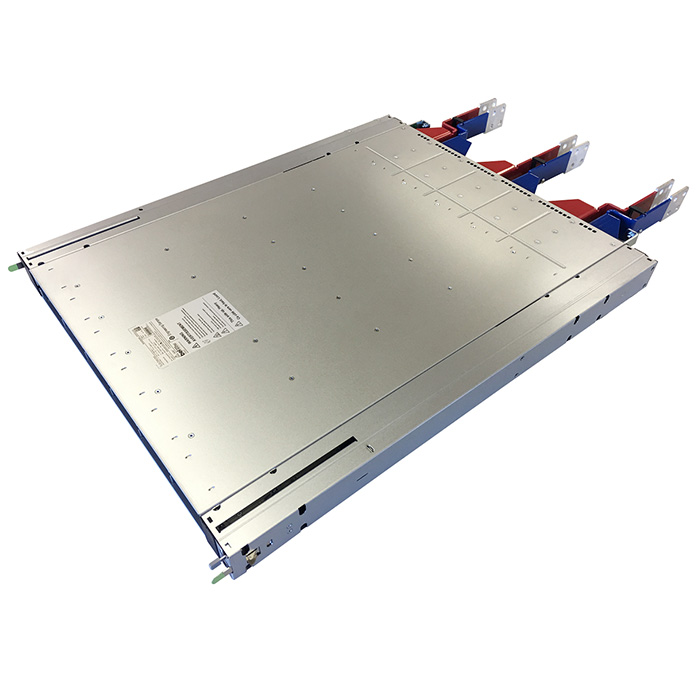

AC-DC Power Shelf | Power 14400W (8700W) | 3-phase | 208-240 VAC line to line input with Neutral line | 3 Sets of Output Blades for +12 VDC output (each set of blades has max.585 A) | Straight Short Bus Bar

Email Form

DESCRIPTION

AC-DC Power Shelf | Power 14400W (8700W) | 3-phase | 208-240 VAC line to line input with Neutral line | 3 Sets of Output Blades for +12 VDC output (each set of blades has max.585 A) | Straight Short Bus Bar

SUPPORT

Email Form

REQUEST QUOTE

DOCUMENTS

Max. Power (W) 14400
Power 3+3 Redundancy (W) 8700
Power 5+1 Redundancy (W) 14400
Input Voltage (VAC) 208-240
Output Voltage (VDC) 12
Max. Output Current (A) 1171
No. of Output Busbars 3 (Straight Short)
Redundancy 3+3/5+1
Operating Temperature (ºC) 0 to 55
Dimensions LxWxH (mm) 650 x 534.5 x 46.5
NAC Included NO
RoHS Compliant Yes
